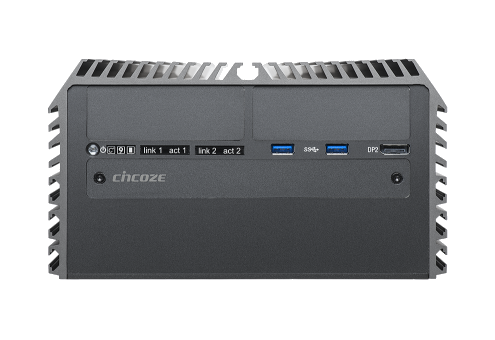

DS-1202

9/8th Generation Intel® Core™ Series Processors, High Performance, Expandable
and Modular Rugged Embedded Computer with 2x PCI/PCIe Expansion Slots

DS-1202

PRODUCTS FEATURES

  • Supports 9/8th Gen Intel® Core™ / Pentium® / Celeron® 8 Core 35W/65W LGA 1151 Processors
  • 2x DDR4 SO-DIMM Socket, Supports Up to 2666MHz, 64GB
  • Triple Independent Displays: 1x DVI-I and 2x DP (4K Resolution)
  • 1x M.2 2280 M Key Socket, Auto-detection for PCIex4 NVMe SSD or SATA Gen3 SSD
  • 2x Front Accessible SIM Card Slots for Signal Redundancy
  • 2x PCI/PCIe Slots for Add-on Cards (Maximum Length: 235 mm)
  • 4x CMI Slots for Modular I/O Expansions
  • 1x CFM Slot for Power Ignition Sensing Function
  • Wide Operating Temperature (-40°C to 70°C )
  • EN50121-3-2 Certified/ EN60950-1

OVERVIEW

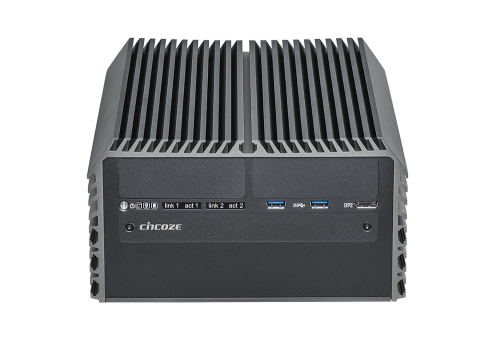

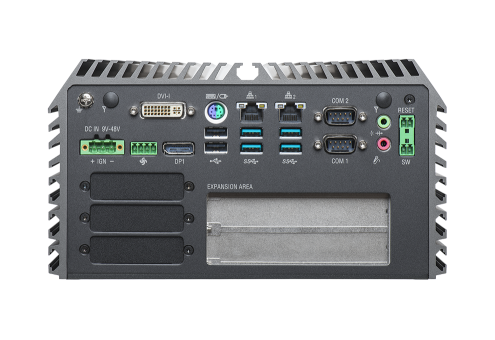

DS-1202 is a high performance fanless embedded computer, powered by 9/8th generation Intel® Core™ processor (Coffee Lake) with up to 8 cores and 64GB DDR4 memory capacity for unprecedented performance to fulfill all kinds of high-end computing requirements. The system also incorporates rich I/O, such as 2x Intel® GbE ports, 2x USB 3.1 (Gen2), 4x USB 3.0, 1x DVI-I, 2x DisplayPort, and 1x M.2 Key M 2280 socket for ultra-fast data transfer speed.

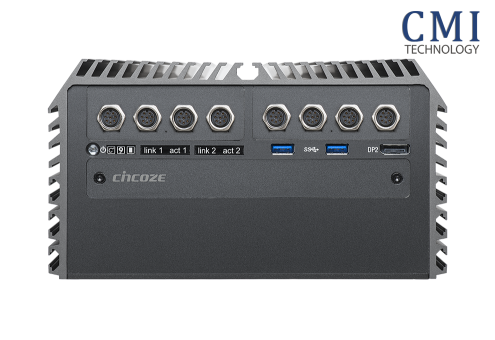

Based on Cincoze’ innovative CMI & CFM Technology, it allows users to expand I/O and functionalities through ready-to-use modules, such as GbE/PoE ports, serial ports, optical isolated digital I/O and power ignition function. Furthermore, DS-1202 is available with two PCI(e) expansion slots to accommodate versatile add-on cards.
Designed to operate under harsh conditions, DS-1202 has passed rigorous testing like EN50121-3-2 and EN60950-1 to fulfill industrial applications such as rolling stock. Besides, DS-1202 features with wide operating temperature (-40°C to 70°C), wide range DC power input (from 9V to 48V), high tolerance of shock/vibration (5G/50G), and industrial-grade protections (OVP, OCP, ESD Surge, …etc).
