Discharge Gun GT-30R3302KA
Electrostatic Discharge Simulator ESS-S3011A/GT-30RA
EN/IEC 61000-4-2 Ed2 & ISO 10605 Ed2 Compliant
SMART ESD simulator which supports all phases of the test (Pre to Post)

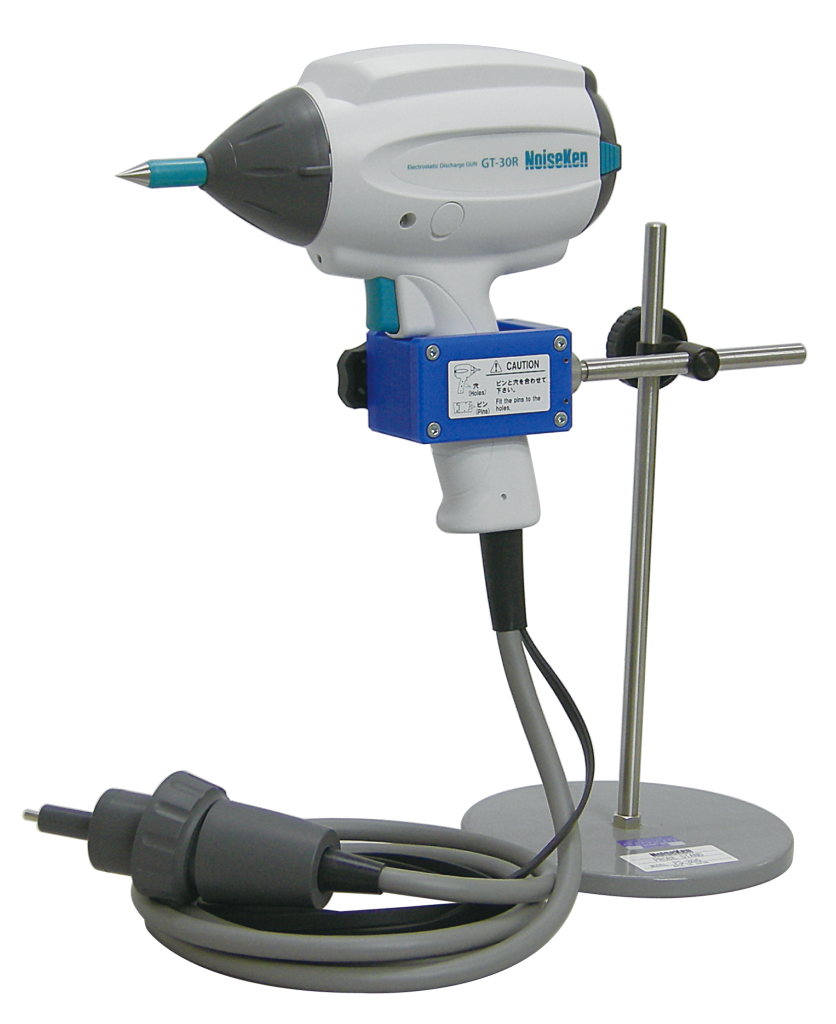

Discharge Gun GT-30R3302KA
Conforming to ISO10605
Discharge gun stand (Model: PS-806) and Conversion Adaptor (Model:03-00074A) are optional accessories.
Features:
- Meets ISO10605 2nd edition
- All the 4 capacitor/resistor units included
Specifications:
| Items | GT-30R3302KA |
| Output voltage | 0.20~30.0kV ±5% (with ESS-S3011A/B3011A) 0.20~16.0kV ±5% (with ESS-L1611A). |
| Discharge mode | Air discharge and contact discharge. |
| Output polarity | Positive / negative |
| Standard energy storage capacitor | 150 PF±10% , 330 PF ±10% |
| Standard discharge resistor | 330 ohm±10% & 2K ohm ±10% |
| Charging resistor | Contained in the CR unit |
| Cable length | 2 m |
| Charged voltage hold time | 5 seconds or more |
| Dimensions | 5 seconds or more Dimensions 83.3(W) x 217.2(H) x 229.3 (D) mm (Discharge tip excluded) |
| Weight | Approx. 1300g (cable and high voltage connector included) |
