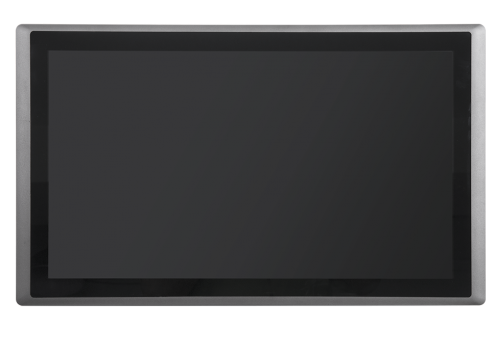

CV-W124 / P2002E

24" 6th Gen. Intel® Core™ Processor U Series Fanless Touch Panel PC with CFM & CDS Technology

CV-W124 / P2002E

OVERVIEW

Cincoze CV-W124/P2000 Series is a 24” high performance fanless and jumperless rugged touch panel PC powered by Intel® 6th generation Core™ processor U series, offering more computing power, faster data processing and a 40% boost to graphics performance, while consuming only 15W of power.
The CV-W124/P2000 Series supports CFM (Control Function Module) Technology, Cincoze own defined interface with integrated power boost and control signal that allows you to extend PoE and ignition sensing functions with additional CFM boards. In addition Cincoze offers a full series of Mini-PCIe Expansion I/O Card (MEC) for adding extra I/O through the universal bracket. The CV-W124/P2000 Series comes with the slim version, and the expandable version (PCI/PCIe card expansion) made with outstanding modular design concept for the greatest flexibility to fulfill the versatile industrial applications.
The CV-W124/P2000 Series is a truly rugged computing system supporting wide operating temperature from 0°C to 60°C, wide range DC input from 9V to 48V, and various kinds of industrial protections.Moreover the instant reboot circuit design allows the system to cope with critical power request for factory applications. The CV-W124/P2000 Series has an integrated SuperCap to avoid high downtime cost of replacing CMOS battery and be absolutely maintenance-free.

PRODUCTS FEATURES

  • 24″ Full HD TFT-LCD with Resistive 5-wire Touch / Projected Capacitive Touch / Glass Only
  • Onboard Intel® 6th Generation Core™ Processor U Series (15W)
  • 2x DDR4 SO-DIMM Socket, Support Up to 32 GB
  • Integrated Intel® HD Graphics 520 Support Triple Display
  • 2x 2.5” SATA HDD Bay, 1x mSATA and 1x CFast Socket
  • IP65 Compliant Aluminum Die-Cast Front Frame
  • 2x Full-size Mini-PCIe Socket for Wireless and I/O Expansion
  • Support CFM Technology for PoE and Ignition Sensing Functions
  • Rich I/O (2x GbE LAN, 6x COM, 5x USB, 16x Isolated DIO)
  • Support Instant Reboot Technology
  • Wide Operating Temperature
  • SuperCap integrated for CMOS Battery Maintenance-Free
  • PCI/PCIe Expandable Version Available (CV-W124/P2002E)
