CR

Guided assembly that tests while you build.

Connect multiple Cirris CR testers together for complex assemblies with thousands of points. The system supports guided assembly with on-screen connector images highlighting proper cavity positions, guidance LEDs on the assembly board, and immediate graphical and audible feedback to catch errors as they occur.

CR

Guided assembly that tests while you build.

Connect multiple Cirris CR testers together for complex assemblies with thousands of points. The system supports guided assembly with on-screen connector images highlighitng proper cavity positions, guidance LEDs on the assembly board, and immediate graphical and audible feedback to catch errors as they occur.

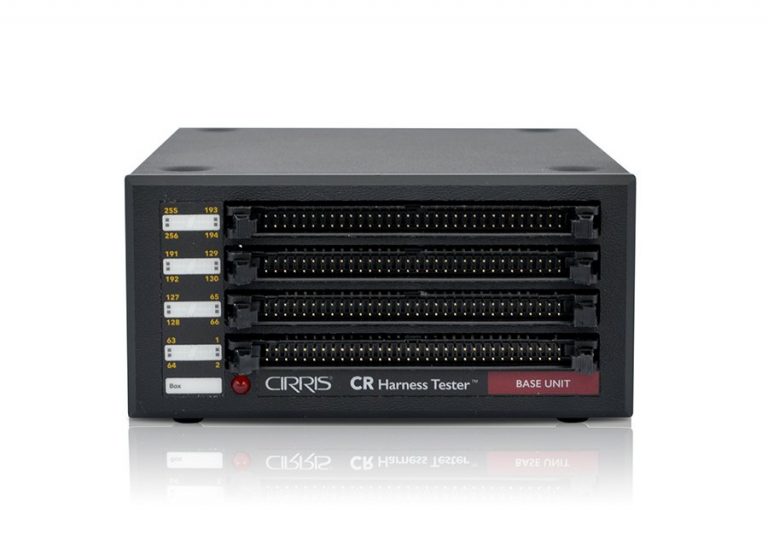

Compact Tester

  • Up to 32,000 test points (256 pts/box).
  • Base unit weighs less than 3 lbs.
  • “Daisy-chain” architecture reduces length and complexity of interface cabling.
  • User-selectable pass/fail resistance thresholds from 0.1 Ω to 500 kΩ.
  • Tests resistors, diodes, and capacitors.
  • 4-Wire “Kelvin” testing capable:
    • Versatile Test ModesSequential build/test.
    • Random build/test.
    • Single test.
    • Continuous test.

Software

  • Step-by-step process with graphical prompts through Cirris Easy-Wire™ software.
  • On-screen graphical representation of connectors and blinking LEDs.
  • Select a graphic connector from a library of over 270 connectors.
  • Create connector details to store for use in multiple test programs.
  • Instructions can be learned from a sample product, imported from wire list data, or imported manually.

Guided Assembly

  • Smart-Lights capable
  • Audible and Visual Results
  • During guided harness assembly an audible tone sounds each time a connection is made.
  • LED Guided Assembly
    • Each LED is driven by 2 regular test points and no special electronics are required.
    • Green blinking LEDs indicate the next two points to be terminated.
    • Red blinking LEDs indicate a miswired connection.

specs:

Test Points

256 points; expandable to 32,000 points in 256-point increments. (Max distance from base unit: 200 ft.)

Low Voltage Test

2 Wire

  • Voltage: 10 V max
  • Current: 1.6 μA to 6 mA
  • Resistance: 0.1 Ω to 100 kΩ ±3% ±0.1 Ω, 100 kΩ to 1 MΩ ±5%

4 Wire

  • Voltage: 10 V max
  • Current: 1.6 μA to 6 mA
  • Resistance: .005 Ω to 100 Ω ±2% ±0.005 Ω

Component Tests

  • Diodes: 0 to 7 V
  • Resistors: 0.1 Ω to 100 kΩ ±3%
  • Capacitors: 100 pF to 1000 μF ±10%

Max Points Per Net

Unlimited

Digital Input/Output

Optional with external PLC

Weight

2.7 lbs (1.3 kg)

Test Point Interface

64 point (2 row x 32 pins) 0.1” male box header

User Interface

PC Requirements

  • Test Station: 2.0 GHz min. processor speed, Windows 10®, 15 GB hard drive space, 4 GB RAM, 256 MB min. video memory, 1024 x 768 min display resolution, sound (for audible feedback), USB 2.0 or 3.0 port.
  • Optional Network Database Server: As above except no sound or USB ports required. Windows 10®, Windows Server 2012® or Windows Server 2016® OS. A Compatible Cirris tester: ( CH2, CR, Easy-Touch, Easy-Touch Pro, 4200 Series, 1100H+, 1100R+ with PC Control Software)

Power

115 / 230 V 50/60 Hz

Dimensions and weight for our product lines in a consistent and in a consistent format.

Note, all dimensions are rounded up from their real measurements and are in the form of Width x Height x Depth.

Size

5.5″ (13.8 cm) x 2.8″ (7.0 cm) x 6.8″ (17.3 cm)
