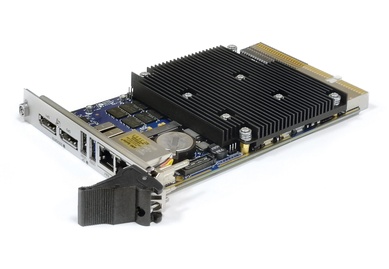

CPC520

CPC520 CPU Module in the 3U CompactPCI Plus IO (PICMG 2.30) is used for high-performance computing and ensures high-speed information exchange.

• Processor: AMD Ryzen Embedded (series V1000 or R1000) SOC APU;
• RAM: DDR4 SDRAM 1600 MHz, 8 GB, x64, ECC;
• FLASH BIOS: 8 MB SPI-Flash;
• SSD SATA Flash disk: 16 GB (SLC NAND Flash);
• Dimensions: No more than: 130.5 × 213.0 х 20.32 mm;
• Power supply voltage: + 5 V ± 5%;
• Software compatibility: Linux, QNX, Microsoft Windows Embedded Standard 7, Microsoft Windows 10;
• MTBF: 100,000 hours;
