CPC518

3U CPCI Serial Intel Xeon D-1559 / Xeon D-1539 / Intel Pentium D-1519 CPU Module

CPC518

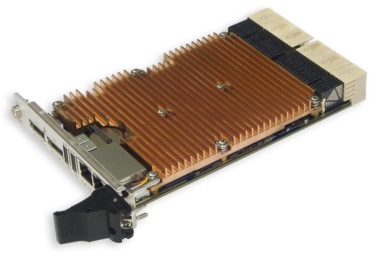

CPC518 CPU Module is implemented in 3U Compact PCI Serial format built on a single-chip processor Intel®Xeon® made with the 14-nm technology.
CPC518 is applied mainly in onboard heterogeneous systems operating under severe conditions and requiring multicore х86-compatible computer with a high capacity.

  • Intel Xeon D-1559 1.5 GHz 45 W, 12 cores, 12 MB cache
  • Intel Xeon D-1539 1.6 GHz 35 W, 8 cores, 12 MB cache
  • Intel Pentium D-1519 1.6 GHz 35 W, 4 cores, 6 MB cache
  • RAM:DDR4-2133 16GB or 32 GB with ЕСС support
  • Operating temperature range: from –40 to + 85°C (industrial),
  • from 0 to + 70°C (commercial)
  • Operating temperature range: from –40 to + 85°C
  • Software compatibility: Linux 3.19; QNX 6.x; Microsoft Windows
  • Embedded Standard 7; Microsoft Windows Embedded Standard 10
  • MTBF: no less than 100 000 h
