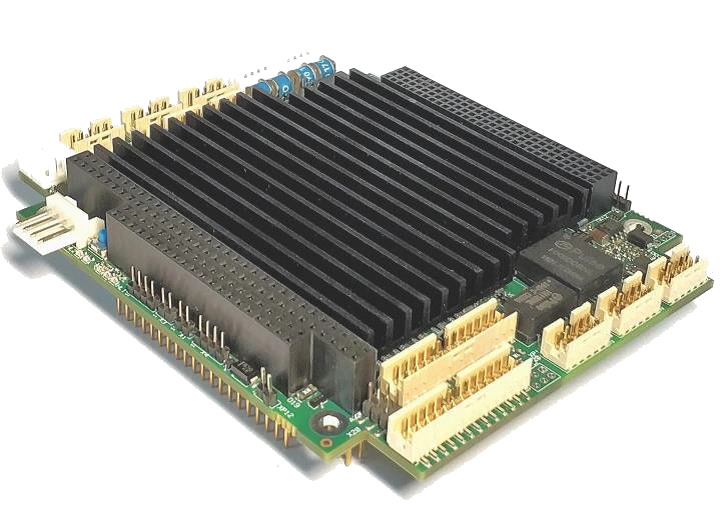

CPC314

The CPC314 is a CPU Module made in PC/104 plus format based on the Vortex86DX3 (800 MHz Dual Core) processor and features compact size and low power consumption. The module is designed as successor product for CPC304 and might be interested also for those customers who want to upgrade or extend their CPC304 based systems life cycle.

– CPU: Vortex86DX3™800 MHz, 2 cores;
– RAM: DDR3 SDRAM 2 GB (soldered onboard);
– Integrated storage: microSD card 4 GB (SLC NAND Flash);
– Power supply: 9-24V DC or 220V AC (2 options);
– GPU: video controller with 2D accelerator, VGA port
  1920х1080, 32 bit color, LVDS port 1920х1080, 32 bit color;
– Watchdog: 2 x CPU-integrated watchdogs with actuation
  interval of 30.5 μs…512 s;
– Operating temperature range: from -40 to +85°C;
– MTBF: no less than 100,000 hours;
– OS compatibility: Microsoft™ MS-DOS®6.22, FreeDOS, Linux
  2.6, 3.2, Windows Embedded Standard 7;
