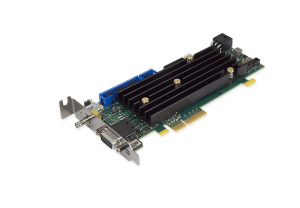

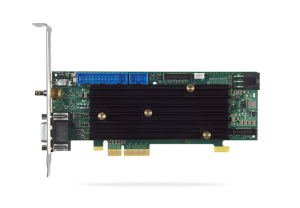

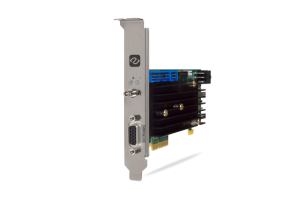

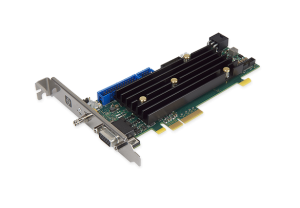

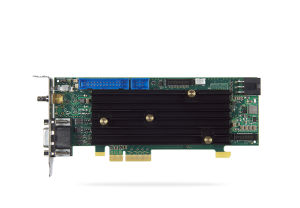

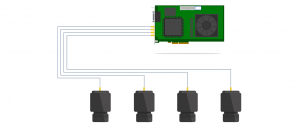

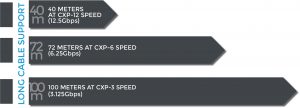

Coaxlink Mono CXP-12 LH

Memento Event Logging Tool

• Memento is an advanced development and debugging tool available for Coaxlink cards.
• Memento records an accurate log of all the events related to the camera, the frame grabber and its driver as well as the application.
• It provides the developer with a precise timeline of time-stamped events, along with context information and logic analyzer view.
• It provides valuable assistance during application development and debugging, as well as during machine operation.

CustomLogic: Your own FPGA logic!

• CustomLogic is an FPGA design kit enabling the design and upload of FPGA code to a Coaxlink board
• It is compatible with the Coaxlink Octo and Coaxlink Quad CXP-12 for which up to 70% of their Xilinx Kintex Ultrascale XCKU035 FPGA resources are available.
• The design phase uses the Xilinx Vivado development tools (not provided)
• Using CustomLogic does not require any additional hardware

Direct GPU transfer

• Sample programs for AMD DirectGMA and NVIDIA (CUDA) available.
• Direct GPU transfer eliminates unnecessary system memory copies, lowers CPU overhead, and reduces latency, resulting in significant performance improvements in data transfer times for applications.
• Direct capture of image data to GPU memory is available using AMD’s DirectGMA. Compatible with AMD FirePro W5x00 and above and all AMD FirePro S series products.

General purpose I/O lines

• Compatible with a wide range of sensors and motion encoders.
• High-speed differential inputs: Quadrature motion encoder support up to 5 MHz.
• Isolated current-sense inputs: 5V, 12V, 24V signaling voltages accepted, up to 50 kHz, individual galvanic isolation up to 250VDC and 170VAC RMS.
• Isolated contact outputs.
• High-speed 5V-compliant TTL inputs/ LVTTL outputs.

High-performance DMA (Direct Memory Access)

• Direct transfer into user-allocated memory and hardware boards that expose PCI addresses
• Hardware scatter-gather support
• 64-bit addressing capability

Area-scan triggering capabilities

• A trigger is used to start the acquisition when the part is in position. Hardware triggers come from the Coaxlink’s I/O lines. Software triggers come from the application.
• An optional trigger delay is available to postpone the acquisition for a programmable time.
• A trigger decimation function allows to skip some of the triggers.
• Camera exposure control allows the application to control the exposure time of the camera.
• When the acquisition starts, at the appropriate timing, the Coaxlink board generates a signal to control an illumination device connected to one of its output lines.

Line-scan triggering capabilities 1/2

Coaxlink supports continuous web scanning (to inspect infinite, continuously moving surfaces without losing a single line) and discrete object scanning (to acquire the image of objects moving in front of the camera).

• A trigger is used to start the acquisition when the part is in position. Hardware triggers come from the board’s I/O lines. Software triggers come from the application.
• After it is started, the acquisition either:
  • Continues indefinitely (for web inspection applications)
  • Continues for a programmable number of lines (to acquire the image of objects of a known length)
  • Continues until an end trigger is received (to acquire the image of objects of a variable length)
• An optional trigger delay is available to postpone the beginning of the acquisition for a programmable number of lines.

Line-scan triggering capabilities 2/2

• The Coaxlink frame grabber controls the camera scanning rate based on the signals received from a motion encoder. When the parts move faster, the acquisition line rate of the camera increases. When the parts move slower, the acquisition line rate of the camera decreases.
• The Coaxlink boards interpret A/B signals from quadrature motion encoders to know in which direction (forward or backward) the part is moving.
• Optionally, the Coaxlink board can be instructed to acquire lines only when the object is moving forward or only when the object is moving backward.
• A feature called Backward Motion Cancellation stops the acquisition when a backward motion is detected. The line acquisition automatically resumes when the motion is again in the forward direction, at the exact place where the acquisition was interrupted.
• A Rate Converter allows the camera to acquire lines at any programmable resolution lower or higher than the resolution of the motion encoder. This gives the designer incredible freedom and flexibility during the development of the application.
• A Rate Divider allows the camera to acquire lines at a resolution lower than the resolution of the motion encoder. It divides the frequency of the incoming encoder signal by a programmable integer.
