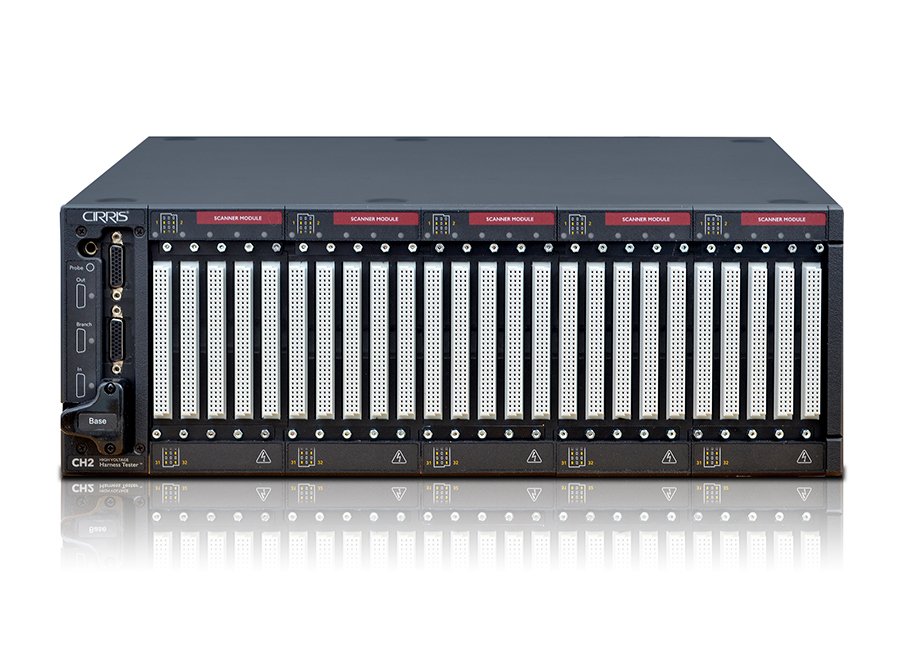

CH2
Our most capable tester for complex assemblies.
The Cirris CH2 has the power to test thousands of points. Connect the CH2 to your PC and use Cirris Easy-Wire™ software for hipot (HV) testing of complex cables and harnesses.
Our most capable tester for complex assemblies.
The Cirris CH2 has the power to test thousands of points. Connect the CH2 to your PC and use Cirris Easy-Wire™ software for hipot (HV) testing of complex cables and harnesses.
Test Complex Assemblies:
- Scanner chassis measures 17″ x 17″ x 6″ and weighs 40 lbs.
- Up to five 160 point scanner boxes (800 pts/box).
- Tests up to 100,000 points.
- 1500 VDC.
- 1000 VAC.
- Easily rack mounted for larger applications.
- Performance Check Kit for ISO 9000 certification.
Software:
- Easy-Wire software provides full SPC data collection.
- Collect test results by operator, test station, or product.
- Customize any standard test report.
- Password-protected security.
- Limit operator access to system features.
- Online help system.
Efficient and Adjustable:
- Smart-Lights capable.
- Zero Defect Guided Assembly Aid.
- Built in digital I/O.
- 8 programmable inputs and 8 outputs
- Marking/stamping machines.
- Fixture locks.
- Pushback modules.
- Energizing relays.
specs:
Test Points
160 to 800 points; expandable to 100,000 points in 160-point increments. (Max distance from base unit: 200 ft.)
Low Voltage Test
2 Wire
- Voltage: Standard 2.5 V max
- Current: 1 μA to 10 mA
- Resistance: 0.1 Ohm to 1M Ohm +/- 2% +/- 0.1 Ohm
4 Wire
- Voltage: Standard 2.5 V max
- Current: 2 μA to 2 A
- Resistance: 0.001 Ohm to 1M Ohm +/-2% +/- 0.001 Ohm
Components Test
- Diodes: 0 to 2.5 V
- Resistors: 0.1 Ω to 1 MΩ ±2%
- Capacitors: 10 pF to 5000 μF ±10% ±50 pF
- Twisted Pairs: Verify proper pairing in twisted pair cables
High Voltage Test
Insulation Resistance Test
- Voltage: 10 to 1500VDC ± 5% ± 5 V
- Resistance: 5 MΩ to 1000 MΩ ±10%
Dielectric Withstand Test
- Voltage: 10 to 1500 VDC ± 5% ± 5 V or 10 to 1070 VAC ± 5% ± 5 V
- Current Limit: (DC) 10 μA to 2.5 mA, (AC) 10 μA to 2.5 mA (RMS)
- Max Capacitance Per Net: 30 nF @ 1500 VDC, 9.5 nF @ 1000 VAC
- HV Energy Limit: 35 mJ
- HV Charge Limit: 45μC
Max Points Per Net
Unlimited
Digital Input/Output
8 Inputs / 8 Outputs, 30 V Open collector, +12 V and +5 V each current limited to 100 mA
Test Point Interface
96 pos. Female VME Eurocard connector-32 pos. loaded
PC Requirements
- Test Station: 2.0 GHz min. processor speed, Windows 10®, 15 GB hard drive space, 4 GB RAM, 256 MB min. video memory, 1024 x 768 min display resolution, sound (for audible feedback), USB 2.0 or 3.0 port.
- Optional Network Database Server: As above except no sound or USB ports required. Windows 10®, Windows Server 2012® or Windows Server 2016® OS.
Power
115 / 230 V 50/60 Hz
Dimensions and weight for our product lines in a consistent and in a consistent format.
Note, all dimensions are are rounded up from their real measurements and are in the form of Width x Height x Depth.
Size
17.4″ (44.1 cm) x 6.3″ (16.0 cm) x 17.4″ (44.2 cm)
Weight
42 lbs (19kg) (fully loaded base or expansion enclosure)
