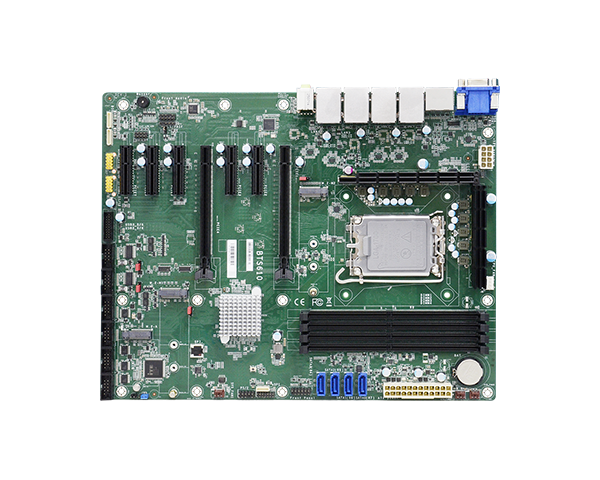

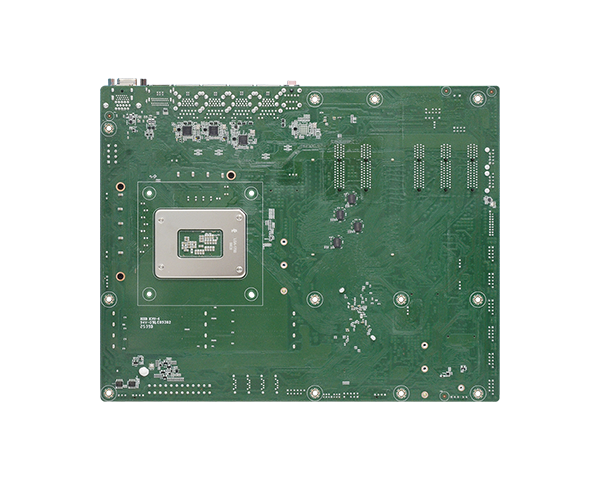

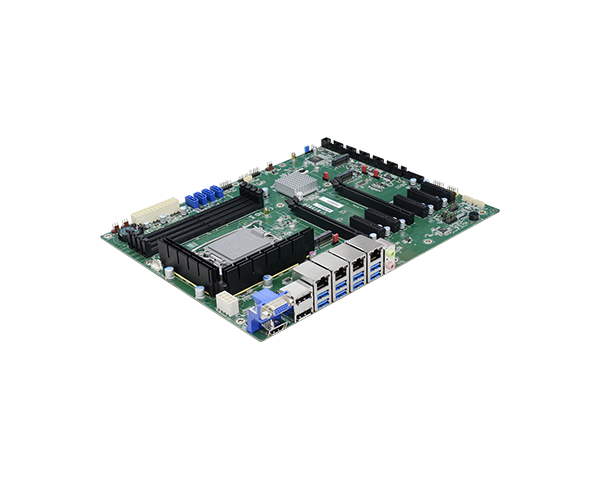

DFI BTS610 – ATX Motherboard with 14th/13th/12th Gen Intel® Core™
- 14th/13th/12th Gen Intel® Core™ Processors (LGA 1700) up to 125W
- Intel® W680 / R680E / Q670E Chipset options
- 4x DDR5 ECC/Non-ECC UDIMM slots supporting up to 192GB

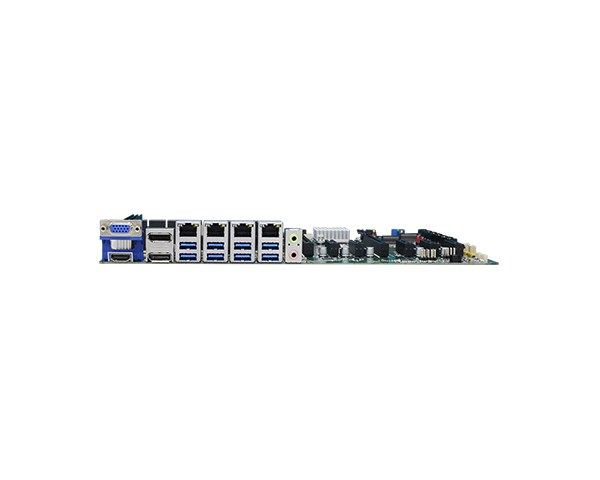

- Quad Independent Displays: VGA, 2x DP++, and HDMI (4K)
- Advanced Expansions: Up to 2x PCIe x16 (Gen 5), 3x PCIe x4, 2x PCI
- Rich I/O: Up to 3x 2.5GbE LAN, 4x USB 3.2 Gen2, 6x COM
- Versatile M.2 Sockets: M-Key (NVMe), E-Key, and B-Key
DFI’s BTS610 is a high-performance industrial ATX motherboard powered by 14th, 13th, and 12th Gen Intel® Core™ processors. It brings ultra-fast DDR5 memory with ECC support (W680/R680E), quad 4K display outputs, and next-generation PCIe Gen 5 expansion capabilities. Featuring robust networking with multiple 2.5GbE LAN ports and extensive I/O connectivity, the BTS610 is engineered for demanding applications in factory automation, machine vision, and edge AI computing.
Specifications Summary
| Processor System | CPU | 14th/13th/12th Gen Intel® Core™ Processors (LGA 1700), up to 125W |
|---|---|---|
| Chipset | Intel® W680 / R680E / Q670E | |
| Memory | Capacity | 4x DDR5 ECC/Non-ECC UDIMM up to 192GB (4400 MHz) |
| Network | LAN Ports | Up to 3x 2.5GbE (Intel I226) + 1x 1GbE (Intel I210) |
| I/O Interfaces | USB | Up to 4x USB 3.2 Gen2, 4x USB 3.2 Gen1, 2x USB 2.0 |
| Display | 1x VGA, 2x DP++, 1x HDMI | |
| Serial & DIO | 6x RS-232/422/485, 8-bit DIO | |
| Expansion | PCIe / PCI Slots | 2x PCIe x16 (Gen 5), 3x PCIe x4 (Gen 4/3), 2x PCI |
| M.2 Sockets | 1x M.2 M-Key (NVMe), 1x M.2 E-Key, 1x M.2 B-Key | |
| Storage | 4x SATA 3.0 (RAID 0/1/5/10) | |
| Mechanical & Env. | Operating Temp. | -5 to 65 °C |
| Dimensions | ATX, 305 x 244 mm |
