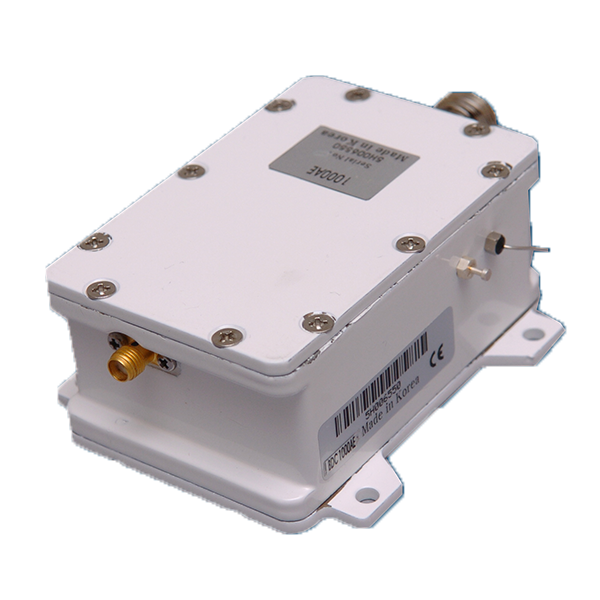

BDC-9000XBF
9000 Single-Band Ka-Band EXT REF BDC
Norsat’s Block Downconverters (BDCs) provide high performance signal conversion for satellite communication
KEY SPECIFICATIONS
| Product Family | 9000 Series |
| Band | Ka-Band |
| # of onboard LOs | Single-band |
| LO Stability | Phase Locked to External Reference at 10MHz |
| Noise Figure | 18 dB |
| Input Frequency – Band 1 | Ka-Band: 19.20 – 20.20 GHz |
| Output Frequency 1 | L-Band: 950 – 1950 MHz |
RF SPECIFICATIONS
| LO Frequency 1 | 18.25 GHz |
| Phase Noise @ 1KHz offset | Depends on External Reference |
| Phase Noise @ 10KHz offset | Depends on External Reference |
| Phase Noise @ 100KHz offset | Depends on External Reference |
| Conversion Gain | 25 dB typ |
| Gain Variation over operating band | 4.0 dB p-p |
| Input VSWR | 2.2 : 1 |
| Output VSWR | 2.1 : 1 |
| Output P1dB compression point | 5 dBm |
ELECTRICAL SPECIFICATIONS
| Power Requirements | 15 – 24 V |
| Current Drain | 350 mA |
INTERFACE SPECIFICATIONS
| RF Input Connector | SMA |
| RF Output Connector | F-75 Ohm |
ENVIRONMENTAL SPECIFICATIONS
| Temperature – Operational | -40 to +60°C |
PHYSICAL SPECIFICATIONS
| Dimensions (L x W x H) | 109 x 78 x 40 mm |
| Weight | 350 g |
