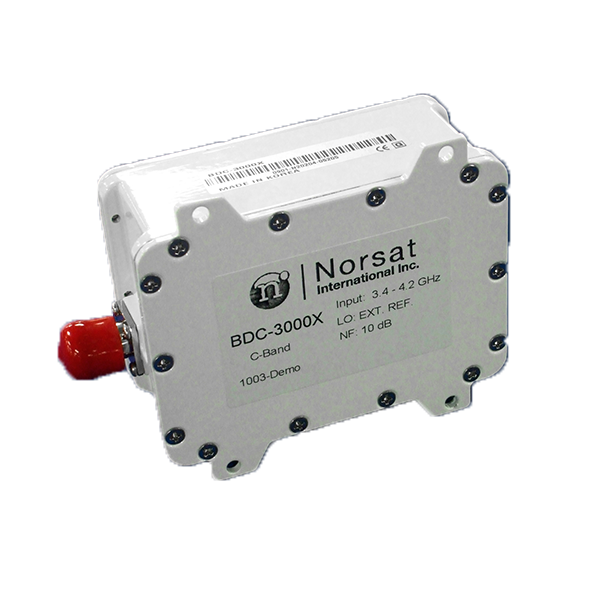

BDC-3000XFC-10S
3000 Single-Band C-Band EXT REF BDC
Norsat’s Block Downconverters (BDCs) provide high performance signal conversion for satellite communication
KEY SPECIFICATIONS
| Product Family | 3000 Series |
| Band | C-Band |
| # of onboard LOs | Single-band |
| LO Stability | Phase Locked to External Reference at 10MHz |
| Noise Figure | 10 dB |
| Input Frequency – Band 1 | C-Band: 3.40 – 4.20 GHz |
| Output Frequency 1 | L-Band: 950 – 1750 MHz |
RF SPECIFICATIONS
| LO Frequency 1 | 5.15 GHz |
| Phase Noise @ 1KHz offset | Depends on External Reference |
| Phase Noise @ 10KHz offset | Depends on External Reference |
| Phase Noise @ 100KHz offset | Depends on External Reference |
| Conversion Gain | 40 dB typ., 38 dB min., 42 dB max. |
| Input VSWR | 2.0 : 1 |
| Output VSWR | 2.0 : 1 |
| Output P1dB compression point | 5 dBm |
ELECTRICAL SPECIFICATIONS
| Power Requirements | 12 – 24 V |
| Current Drain | 300 mA |
INTERFACE SPECIFICATIONS
| RF Input Connector | SMA |
| RF Output Connector | F-75 Ohm |
M & C SPECIFICATIONS
| Input Power Port | DC Power via Output Connector |
ENVIRONMENTAL SPECIFICATIONS
| Temperature – Operational | -40 to +60°C |
| Temperature – Storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS
| Dimensions (L x W x H) | 129 x 94 x 46 mm |
| Weight | 700 g |
