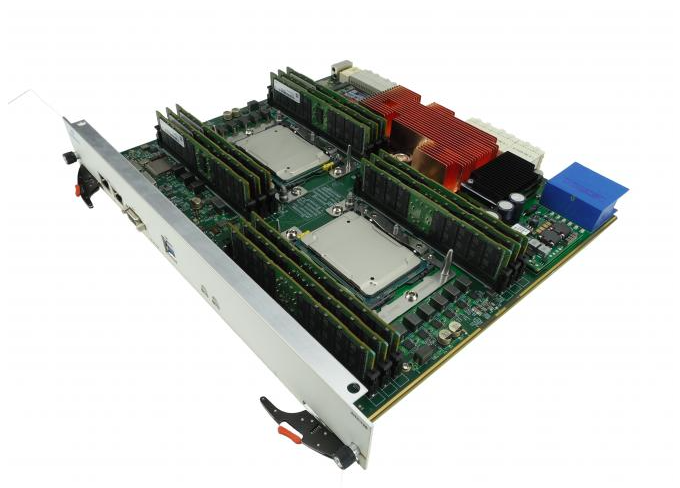

ATCA Rugged Blade Processor with Dual Xeon Cascade Lake-SP


The ATC128 is a high performance ATCA processor blade featuring dual 24 core Intel® Xeon® processors, each with six banks of memory providing up to a total of 384 GB DDR4 memory with ECC.

ATC128 is versatile in connectivity and includes two PCIe Fabric Interfaces, PCIe to RTM expansion, dual GbE base Interfaces, dual front panel GbE egress Ports, front panel Micro USB (RS-232), USB 3.0 Ports and front panel VGA connector. Onboard mSATA storage is available for local boot.

The ATCA blade is PXI-boot capable via any of the onboard Ethernet interfaces. It offers Serial over LAN (SOL) utilizing Hardware Random Number Generation (RNG) to form a secure session.

The ATC128 has dual redundant BIOS-boot capability with multiple (WDTs) for fail-safe, before and after OS boot. The ATC128 has an onboard FPGA which allows secure boot of the system. The FPGA can be reprogrammed by the customer to meet their security requirement.

The Unit uses one of the most feature rich Health Management Module in the industry, incorporating HTTP and HTTPS support, Web Interface, added security with SSL, multiple user permission level, etc.

The ATC128 can be ruggedized for harsh environments. See customer ordering options for conformal coating.


  • High performance rugged processor blade
  • Electrical, mechanical, software, and system-level expertise in house
  • Full system supply from industry leader
  • AS9100 and ISO9001 certified company
