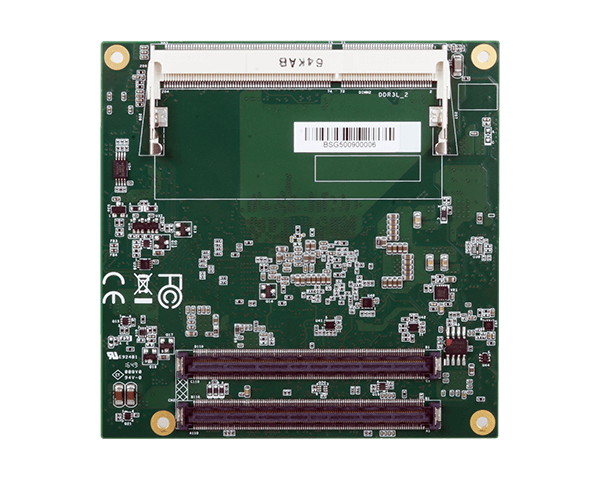

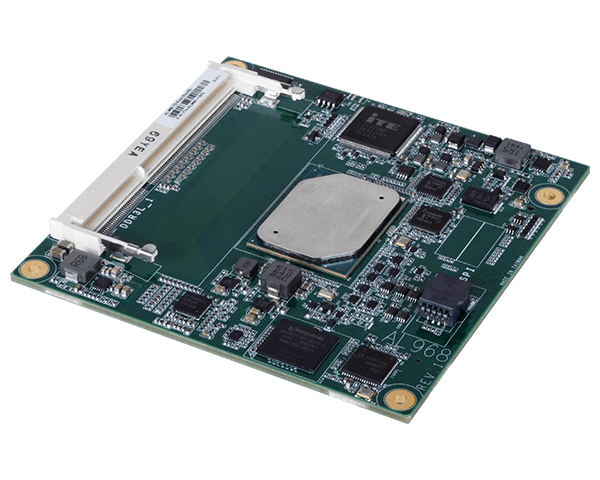

AL968

  • Dual channel DDR3L 1600MHz SODIMM up to 8GB
  • Three independent displays: VGA*/DDI + LVDS*/eDP + DDI
  • Multiple expansion: 4 PCIe x1, 1 LPC, 1 I2C, 1 SMBus, eMMC
  • Rich I/O: 1 Intel GbE, 4 USB 3.0, 8 USB 2.0, 2 SATA 3.0
  • 15-Year CPU Life Cycle Support Until Q4′ 32 (Based on Intel IOTG Roadmap)

Rugged Design and Energy-Efficiency for Deeply Embedded Applications

DFI launched new products to provide enhanced processing capability, low-power consumption, and brilliant graphic performance under Goldmont architecture with 14nm manufacturing node. Relying on DFI’s innovative abilities in design and manufacture, these products are small-sized, fanless, and support extended temperature range from -40°C up to +85°C, which makes it a perfect suite for many space-constrained and thermally limited embedded applications.

Wide Operating Temperature with Fanless Design

These products are able to survive under a wide -40°C to +85°C operating temperature range. Satisfying the demands of industries in harsh environments with the need of thermal solution designs. Also, this outstanding fanless design makes awesome system integration.

Energy Saving but High Performance

With the latest processor under Goldmont architecture, these boards offer 30% significant improvement for processing and intense graphic performance (Gen9), it also saves an average of 9 watts TDP energy.

Experience Clarity with 4K UHD High-Resolution

The new series powered by enhanced graphic engine from hardware decoding of HEVC and VP9 codecs supports 4K high resolution (DP: 4096×2304 @ 60Hz) and three independent displays for medical and multimedia solution.

Multiple Storage Choice: eMMC, SSD/ M.2 Module

As for storage, these new products will support high speed SATA 3.0 drives, SSD and eMMC 5.0 options up to 128GB. Specially, advanced M.2 interface that integrating multiple functions including Wi-Fi/LTE/mSATA is the ideal choice for automation, storage and design of IoT appliances.

Complete Product Line

Based on the new E3900 series processor, DFI has created a wide array of rugged and reliable industrial motherboards and modules, including Mini-ITX, SBC, Pico-ITX, COM Express, Qseven R2.1.

Endless IoT Possibilities with Windows 10 Compatibility

Collocating with Windows 10 platform characterized by its security functions, DFI’s E3900 series products featured small-sized and rugged-design and are ready to meet IoT demands. With the integration, these products can comprehensively help our clients simplify development of IoT-connected devices and generate total IoT solution.
