AIMB-788
AIMB-788
LGA1700 ATX Motherboard Supporting 12/13/14th Gen & Intel® Core™ Processor Series 2

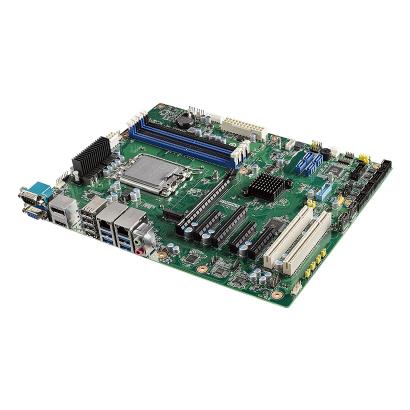

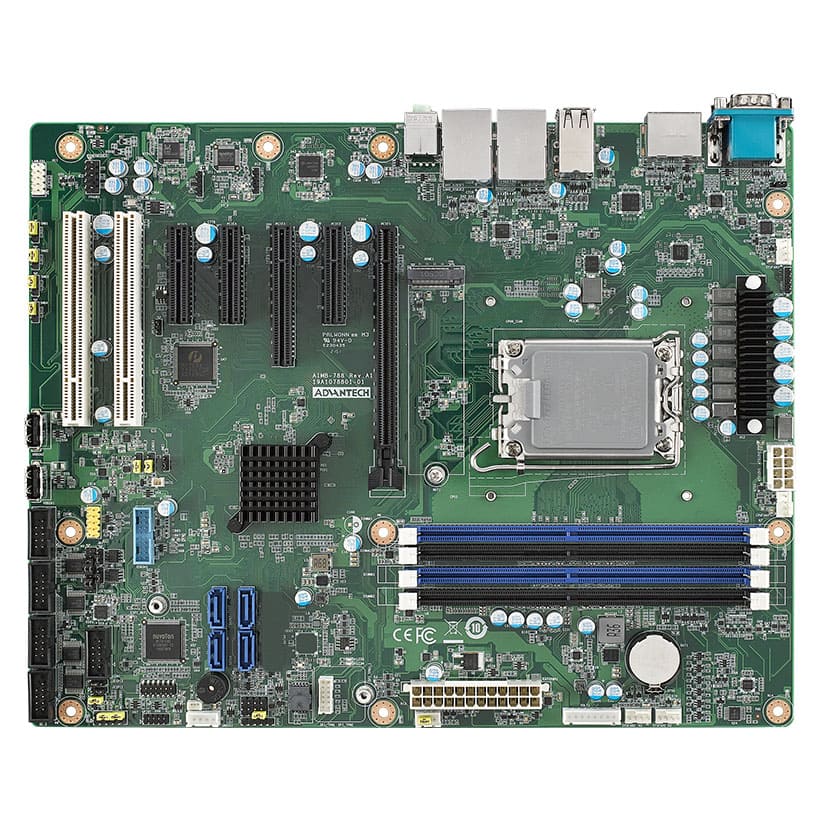

Advantech AIMB-788 – ATX Motherboard with 12th/13th/14th Gen Intel® Core™
- Intel® 12th/13th/14th Gen Core™ i9/i7/i5/i3 & Core™ Series 2 (LGA1700)
- Intel® Q670E chipset
- 4x DIMM sockets up to 128 GB DDR4 3200 MHz
- Triple display support: DP, HDMI, and VGA
- Multiple Expansions: PCIe x16 (Gen4), PCIe x8, PCIe x4, and PCI slots
- Advantech iBMC remote out-of-band management solution on DeviceOn
- Rich Storage: M.2 and SATA RAID 0, 1, 5, 10
The Advantech AIMB-788 is an industrial-grade ATX motherboard powered by the Intel® Q670E chipset, supporting 12th, 13th, and 14th Gen Intel® Core™ processors. Designed for high-performance computing, it offers robust expansion options including PCIe Gen4, triple independent displays, and DDR4 3200 memory. Built-in Advantech iBMC out-of-band management ensures remote monitoring and reliability, making it ideal for edge AI, industrial automation, and heavy-duty applications.
Specifications Summary
| Processor System | CPU | 12th/13th/14th Gen Intel® Core™ i9/i7/i5/i3 & Series 2 (LGA1700) |
|---|---|---|
| Chipset | Intel® Q670E | |
| Memory | Capacity | 4x 288-pin DIMM sockets, up to 128 GB DDR4 3200 MHz |
| Network | LAN Ports | 2x GbE LAN |
| I/O Interfaces | USB & Display | USB 3.2 Gen 2, USB 3.2 Gen 1, USB 2.0 / DP, HDMI, VGA |
| Serial | RS-232, RS-232/422/485 | |
| Expansion | PCI / PCIe Slots | 1x PCIe x16 (Gen 4), 1x PCIe x8 (x4 link), 3x PCIe x4, 2x PCI |
| Storage | 4x SATA 3.0 (RAID 0/1/5/10), 1x M.2 | |
| Management | Out-of-Band (OOB) | Advantech iBMC remote management solution |
| Mechanical & Env. | Operating Temp. | 0 ~ 60 °C (Depending on CPU cooler) |
| Dimensions | ATX, 304.8 x 244 mm |
