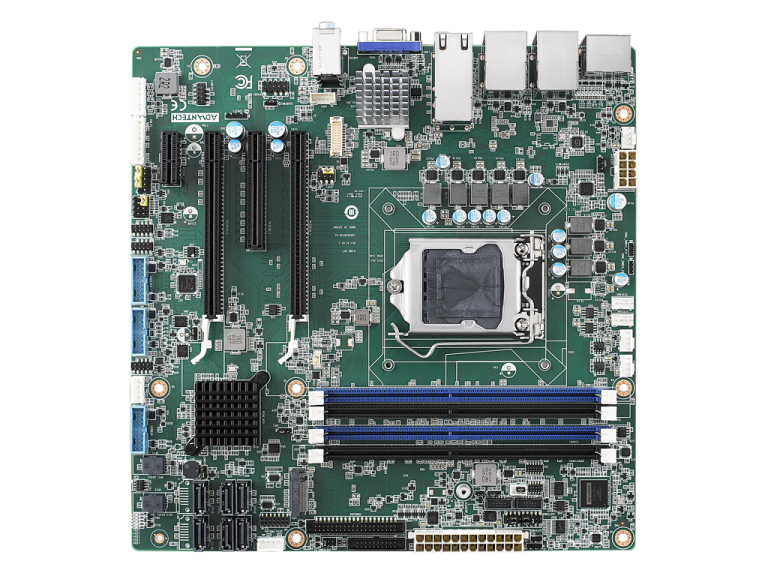

AIMB-587

Intel® Xeon® 10th Gen Core™i9/i7/i5/i3 LGA1151, MicroATX
with 2 DP++/VGA/eDP /6 COM, 2 Gbe LANs/ 2 10GbE Lans/ 4 USB3.2 Gen2/ 6 USB3.0 Gen1, ATX

AIMB-587
  • Supports Intel® 10th Gen Xeon/ Core™ i9/i7/i5/i3 processor with Q470E/ W480E chipset
  • Four U-DIMM sockets support up to 128GB DDR4 2666/2933 MHz SDRAM
  • Supports 2 DP++, VGA(option), eDP display with Triple Display support
  • Supports Intel AMT 12.0 and Intel vPro competent
  • Supports PCIE Gen3, Dual 10 GbE LAN, Dual GbE LAN, M.2(M-key) and up to 8 x SATAIII
  • Supports 4 USB3.2 Gen2, 6 USB3.1 Gen1 and 6 USB2.0
  • Supports DeviceOn and Embedded Software APIs
