ADM-XRC-9R1 – RF Signal Sampling/Generation

ADM-XRC-9R1 – RF Signal Sampling/Generation


  • RF Signal Sampling/Generation
  • Radar
  • Beamforming
  • MIMO (5G) communications Tx and Rx
  • Signal Detection/Jamming

Board Features

  • Xilinx Zynq Ultrascale+ XCZU27DR-2 FPGA
  • On-board microcontroller accessible via USB, provides
  • power rail monitoring
  • temperature Monitoring
  • clock programming
  • COTS Product
  • XMC (Switched Mezzanine Card, VITA 42)

FPGA Features (Hard IP)

  • 4x ARM® Cortex™-A53 MPCore™ – 1.5GHz
  • 2x ARM® Cortex™-R5 MPCore™ – 533MHz
  • 8x 12 bit 4/5 GSPS RF-ADC
  • 8x 14 bit 6.5/10 GSPS RF_DAC
  • 8x SD-FEC cores (ZU28/ZU48 only)
  • 1x PCIe Gen3x8 in Fabric
  • 1x PCIe Gen2x4 to ARM PS

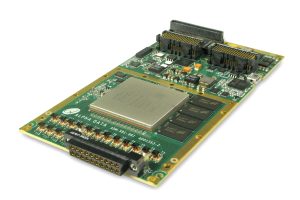

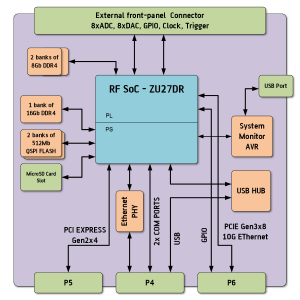

The ADM-XRC-9R1 is a high performance System On Module (SOM) based on the Xilinx Zynq Ultrascale+ RFSoC, which combines FPGA Fabric, ADC and DAC interfaces and ARM CPU cores in a single low-power device.

The module is provided in rugged XMC format and is available in Industrial temperature grades with Air- or Conduction Cooling.
