ADM-PCIE-KU3
High-Performance Data Processing
High-Performance Data Processing
Applications
- High-Performance Data Processing
- Data Center
- Network Accelerator
- High Performance Computing (HPC)
- System Modeling
- Market Analysis
Board Features
- 2x QSFP+ Cages
- 2x 8GB DDR3 ECC-SODIMMs
- 2x SATA Interfaces
- System Monitor
- Heatsink with optional fan
FPGA Features (Hard IP)
- 3x PCI Express Gen3 cores
Summary

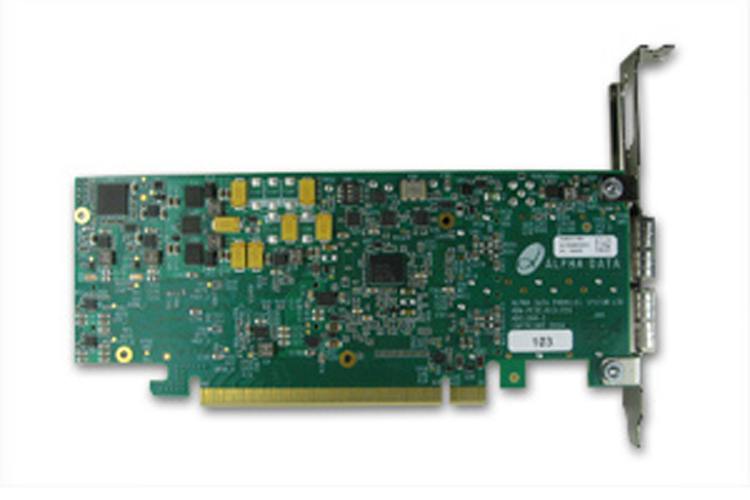

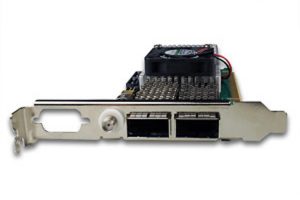

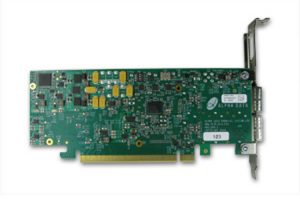

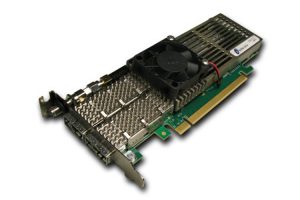

The ADM-PCIE-KU3 is a high performance reconfigurable Half-Length, low profile x16 PCIe form factor board based on the Xilinx Kintex UltraScale range of Platform FPGAs.

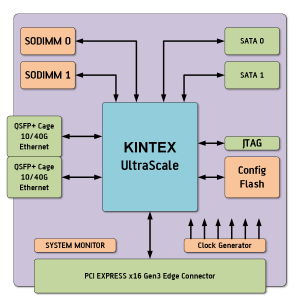

The ADM-PCIE-KU3 features two independent channels of DDR3 memory capable of 1600MT/s (fitted with two 8GB SODIMMs), SATA connections, High Speed I/O via Dual QSFP+ ports supporting up to 40G Ethernet or 4 x 10G Ethernet links, voltage/temperature/current control and monitoring, air-cooled heat sink with removable fan. Please contact Alpha Data Sales for no-fan ordering option.
