ADM-PCIE-8K5

High-Performance Data Processing

Applications

  • High-Performance Data Processing
  • Video Processing
  • Machine Learning
  • High Performance Computing (HPC)
  • Network Acceleration

Board Features

  • 2x SFP+ Cages
  • 2x Firefly Interfaces
  • Heatsink with passive and fan cooling options

FPGA Features (Hard IP)

  • 6x PCI Express Gen3 x8 cores

Summary

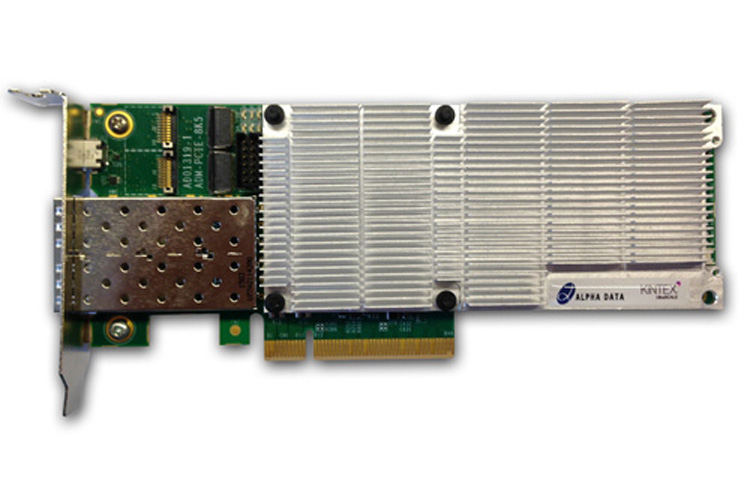

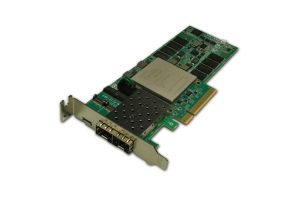

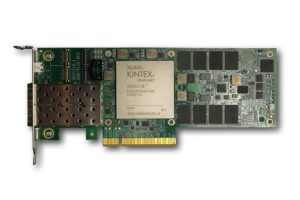

The ADM-PCIE-8K5 is a half-length, low profile, PCI Express Add-In Card featuring the powerful and efficient Xilinx Kintex UltraScale KU115-2 FPGA.

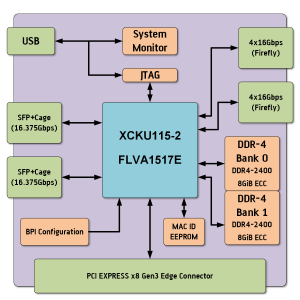

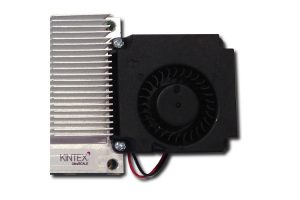

The ADM-PCIE-8K5 features two independent channels of DDR4 memory capable of 2400MT/s (fitted with two 8GB ECC banks as standard 16GB – optional 32GB available), dual SFP+ cages providing 2x 10GbE/16G Fiber Channel (Gen 5) capability. Dual Firefly connectors for up to 4x16Gbps per connector. Voltage/temperature/current control and monitoring. The board is supplied with an air-cooled heat sink and optional fan for development systems without sufficient airflow over the PCIe slots. For deployment in rack-mount server systems the fan is not required (passive cooling).

IBM Power8 and CAPI compliant
