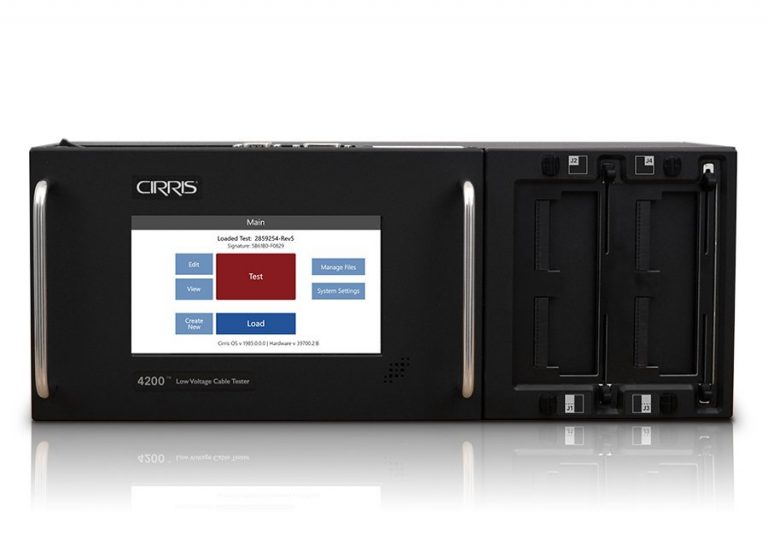

The Cirris 4200 cable tester combines the powerful Cirris OS software with the intuitive Cirris adapter system to create a capable tester that can accurately analyze your cables for opens, shorts, miswires, and other errors.

4200

The Cirris 4200 cable tester combines the powerful Cirris OS software with the intuitive Cirris adapter system to create a capable tester that can accurately analyze your cables for opens, shorts, miswires, and other errors.


Product Features

  • Quality Without Being Overpriced: Affordable for small shops and scalable for larger operations.
  • All essential testing: Test for opens, shorts, miswires, and intermittent errors. Also test components such as resistors, diodes, and capacitors.
  • Security: Ensure test programs and system setting are the same between facilities and operators by locking selected tester functions to prevent system and test program changes.
  • Fast Testing: Innovative technology and efficient algorithms reduce time spent on testing.
  • Compact: Small, lightweight, and self-contained for easy movement around production floor.
  • Expandable for Large Assemblies: Expansion boxes create up to 1024 test points (128 points per box).
  • Easy to Learn: No advanced skills or training necessary to begin testing.
  • Built-in Networking: Easily share test programs and printers among multiple units.
  • Test Program Customization: Customize labels, reports, digital IO, etc. in individual test programs or globally.
  • Multiple Language Options: Avoid mistakes caused by language barriers.
  • Quick Test Setup: The Cirris Adapter System provides inexpensive, interchangeable fixturing.
  • Transition from 1100: Use test programs and reports already setup in the 1100R+ on the 4200.
  • Durable: Test thousands of cables without fear of equipment failure.
  • Optional PC Control: Connect to a PC and expand capability with Cirris Easy-Wire™ software.
  • Full-color touch screen: View instructions and test results on 7” display.

specs:

Test Points

128 points; expandable to 1,024 points in 128-point increments

Low Voltage Test

2 Wire

  • Voltage: 4 V max
  • Current: 3 μA to 6 mA
  • Resistance: 0.1 Ω to 100 kΩ ± 1% ± 0.1 Ω, 100 kΩ to 5 MΩ ± 10%

4 Wire

  • Voltage: 4 V max
  • Current: 1 mA to 6 mA
  • Resistance: 0.005 Ω to 10 Ω ± 2% ± 0.005 Ω

Component Tests

  • Diodes: Silicon, LEDs, zeners with breakdown > 4 V
  • Resistors: 0.1 Ω to 100 kΩ ± 1% ± 0.1 Ω, 100 kΩ to 5 MΩ ± 10%
  • Capacitors: 5 nF to 100 μF ±10% ± 0.02 nF

Max Points Per Net

Unlimited

Digital Input/Output

4 Inputs / 6 Outputs, 24 V Open collector, +10 V and +5 V eachcurrent limited to 100 mA

Test Point Interface

Cirris Adapter System

User Interface

  • Display: 7” color graphical display with capacitive touch screen(800 X 480 pixel resolution)
  • Localization: English, German, Spanish with ability to translate to other languages as needed
  • Memory: Internal memory for test program storage (8GB or more)
  • File transfer: Transfer test programs either by connecting directly to a PC or using a USB flash drive.
  • Printing: Local label printing via serial port. Network printing via optional Cirris Hub™ software.
  • Optional PC control: Additional advanced features via Easy-Wire® software

Power

100-240V~, 50-60Hz, 1.2A

Size

  • Main Unit: 17.4”w x 2.5”h x 6.7”d (44.1 cm x 6.4 cm x 17.0 cm)
  • Add-on Box: 6.3”w x 2.5”h x 6.7”d (16.0 cm x 6.4 cm x 17

Weight

  • Main Unit: 7.10 lb (3.22 kg)
  • Add-on Box: 2.30 lb (1.04 kg)
