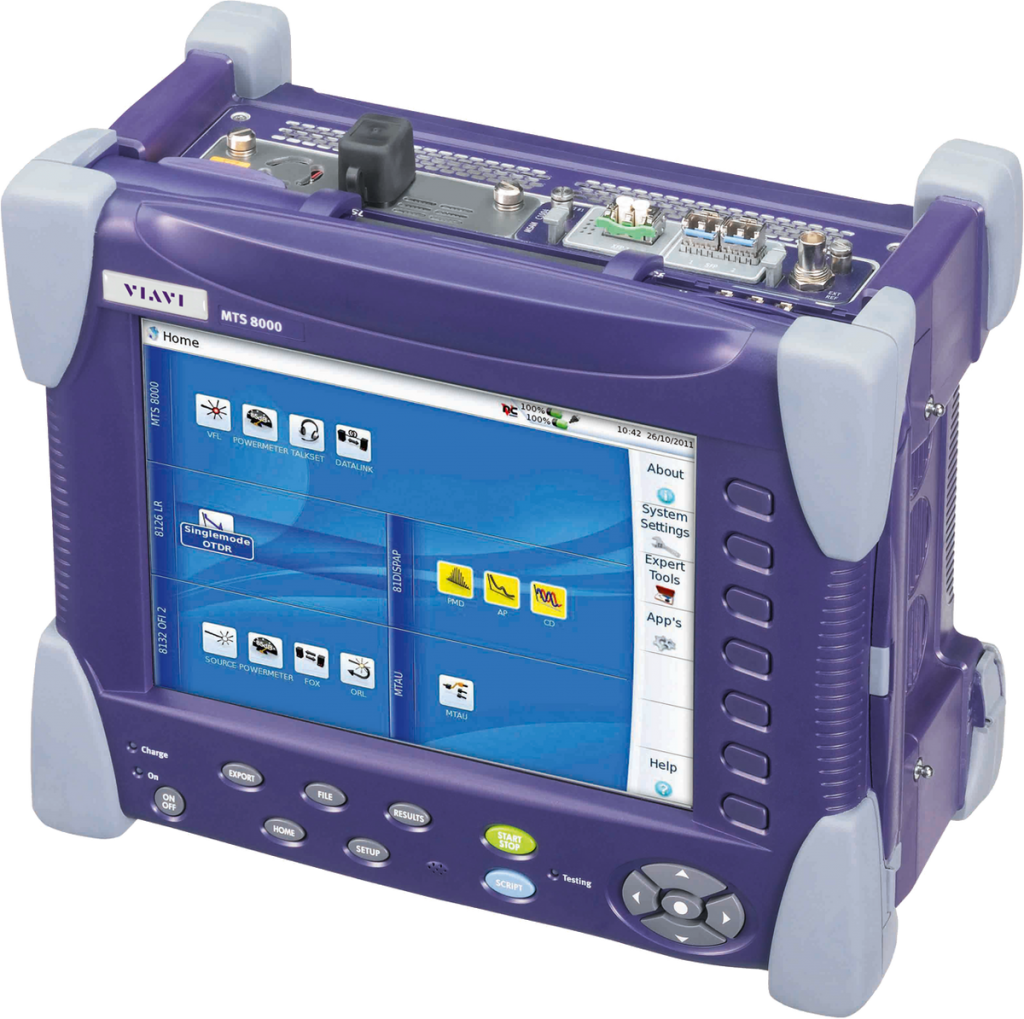

T-BERD/MTS-8000 Scalable Multitest Platform

Based on the award winning VIAVI T-BERD/MTS-8000 platform covering installation, maintenance and troubleshooting testing needs of any optical networks, the T-BERD/MTS-8000 V2 meets next generation network challenges with additional fiber inspection & test, ROADM and 40G / 100G test capabilities

Benefits:

• Future ready to keep ahead of technology curve: from traditional fiber and BERT testing to advanced high speed ROADM testing and 40G / 100G service activation, maintenance and troubleshooting.
• Scales as your network scales: mix and match over 40 apps and hundreds of test configurations to meet your exact needs.
• Cuts down testing and post-processing time: boosted processing power, built-in pass/fail functionality and automated test scripts drive best practices and close-out reports in PDF format.
• Connects everywhere from anywhere: 3G, WiFi, Bluetooth, USB and Ethernet.
• Remotely coach and support field techs with Smart Access Anywhere (SAA).

Applications:

• Enables optical connector inspection and full fiber characterization withOTDR, IL, ORL, CD, PMD and AP.
• Tests and troubleshoot WDM systems and ROADM networks with Optical Spectrum & Correlation Analyzers.
• Tests and troubleshoots converged Ethernet/IP networks at 10 Mbps to 100 Gpbs interfaces and captures and analyzes packets.
• Tests Layer 1-3 Ethernet/IP SLAs with an automated, enhanced RFC 2544/SAMComplete per ITU-T Y.1564.
• Tests TDM/PDH to SONET/SDH at OC-3/STM-1 to OC-192/STM-64, including service disruption measurements and path overhead (POH) capture with triggers.
• Measures PMD on live traffic and tests in-band OSNR in DWDM/ROADM systems with In-Service PMD.
• Enables installation and maintenance of OTN networks up to 11.1 Gbps andOTU4 with full 100 Gpbs client .
• Supports 1/2/4/8/10 Gpbs FC for installation and maintenance of SANs and low-latency circuits.

Key Features:

• 10.4 inch high-visibility touch screen display.
• High-speed PowerPC processor, rugged SATA solid-state hard disk and latest high-capacity Li Ion battery technologies.
• 1G Ethernet, Wireless connectivity (3G, Wifi, Bluetooth) and four USB interfaces.
• Built-in optical options including power meter, VFL and talk set.
• Automated connector inspection with IEC pass/fail analysis.
• Compatible with T-BERD/MTS 6000 test modules.


This product is StrataSync-enabled
StrataSync is a hosted, cloud-based solution that provides asset, configuration, and test data management for VIAVI instruments and ensures all instruments have the latest software and options installed. StrataSync Core supports the OneExpert platform at no charge. StratSync Plus is also available for enhanced data management capability
