OSA Modules: High resolution OSA-610 for T-BERD/MTS-6000A, -8000 Platforms

High resolution OSA with lab performance in a field-ready tester for spectral analysis of 10/40/100 and 400 G DWDM networks.

OSA Modules: High resolution OSA-610 for T-BERD/MTS-6000A, -8000 Platforms

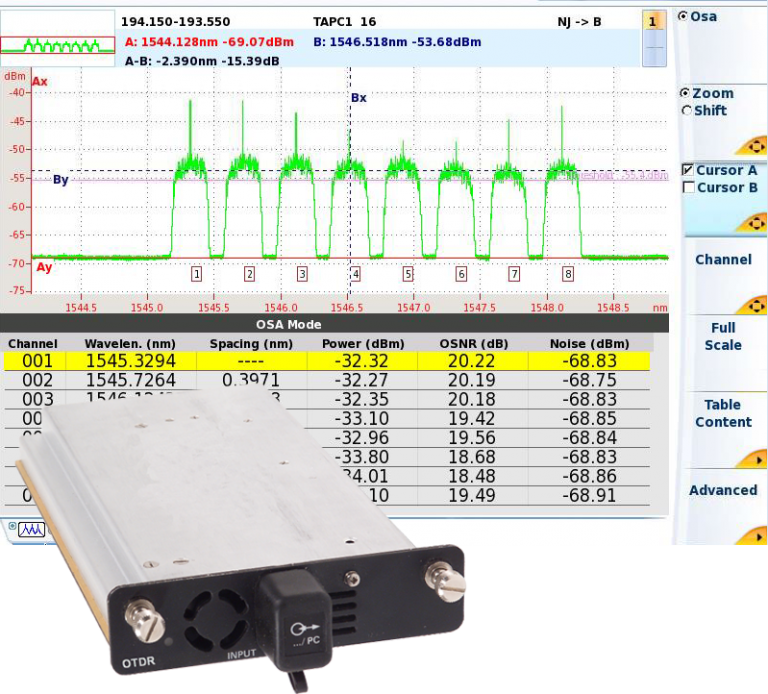

VIAVI OSA-610 High Resolution Optical Spectrum Analyzer offers outstanding resolution bandwidth and unprecedented wavelength accuracy that is 5 to 10 times better than traditional OSAs, making it ideal for existing applications but also advanced signal analysis such as 400G super channels. It is a compact solution for lab and field where reliability and performance are critical.

Benefits:

  • Industry’s first field OSA that fully analyzes Nyquist WDM signals.
  • Separates and analyzes narrow guard-bands in compressed super-channels enabling 400 G deployments.
  • The smallest and lightest high-performance 400 G ready OSA available.
  • From the lab to the field — True 400 G lab performance in a field-ready tester.

Applications:

  • Test DWDM components and systems in the C-band.
  • Validate and deploy flex-grid DWDM systems.
  • Qualify Nyquist signals and super channels.

Key Features:

  • 3pm wavelength accuracy.
  • Extended C-band acquisition range (1526-1568nm).
  • Frequency, power level and OSNR measurement.
  • Side-mode suppression ratio measurement capability.
  • Compatible with the T-BERD/MTS-6000A, -8000 Platforms.
