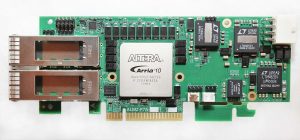

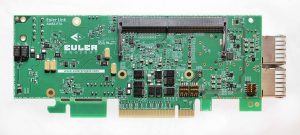

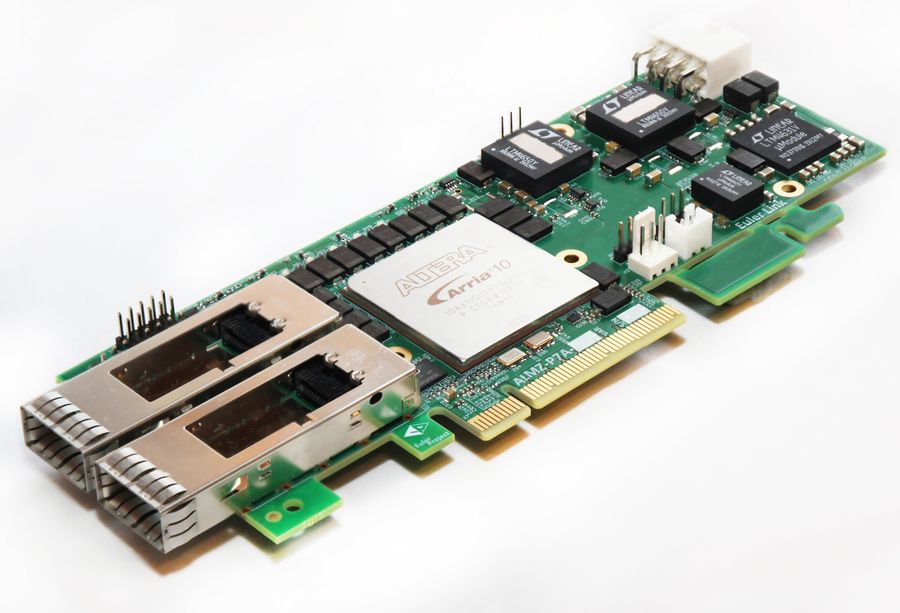

NETWORKING AND TELECOM FPGA ACCELERATOR WITH 2XQSFP+ PORTS

Up to 1.5 TFLOPS of processing power per accelerator
1.115 million logical elements and 42Mb memory cache
3300 FPU DSP Units (IEE754)
Memory support: DDR4 (up to 16GB)
Network Interfaces: 2x40G QSFP +
Host Interface: PCIe Gen 3.0 x 8 lanes
Consumption (typical) 30-40 W
OpenCL BSP (HPC)

Сharacteristics

Form Factor	Half-height, half-length, single width PCI Express card 168 mm x 69 mm x 28 mm
Host Interface	8-lane PCI-Express Gen 3.0 Actual performance is host computer chipset and operating system dependent
Network Interfacing	Two 40G QSFP+ Network Ports
Cooling	Standard: single-width active heatsink (embedded fan) Optional: single-width passive heatsink
Processing	Intel Arria-10 FPGA 20nm – 10AX115H4F34 Default configuration: GX 1150 Speed grades options available – please contact Other FPGA options available – 10AX090, 10AX066, 10AX048
Application Development	Supports multiple design flows including Intel FPGAQuartus Prime HDL and OpenCL SDK
DDR4 SDRAM Memory	DDR4 SDRAM x 72 bits in SODIMM up to 16GB
Electrical	On-card power derived from the host motherboard PCIe slot » On-card power derived from ATX connector Power dissipation is application dependent Typical power consumption ~30-50W Card designed to deliver up to 75W power consumption
Power Supply Monitoring & Reporting	External JTAG slot for Intel USB-Blaster II programmer Power and temperature monitoring up to 32 boards via CAN bus with connection to host via USB/Ethernet/Wifi Multiboard telemetry analysis PC tool (optional)Technical specifications (e.g. FPGA type, size, external memory capacity etc.) can be modified to meet the exact needs of commercial customer applications as off-the-shelf product available to the general market
Deliverables	FPGA EulerLine acceleration card » Active heatsink and PCIe fittings (std and low profile) OpenCL Linux “HPC” Board Support Package (BSP) 1-year hardware warranty
Customization	Technical specifications (e.g. FPGA type, size, external memory capacity etc.) can be modified to meet the exact needs of commercial customer applications as off-the-shelf product available to the general market
Integrated servers	EulerLine accelerator cards are available pre-integrated in server platform DELL R740
Integration (Portable)	EulerLine is available for purchase in a portable platform EulerPico
Application optimization	EulerProject provides consultancy and OpenCL trainings services assisting customers in the porting, optimization and benchmarking of applications executed on EulerLine FPGA accelerators
