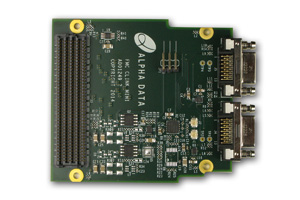

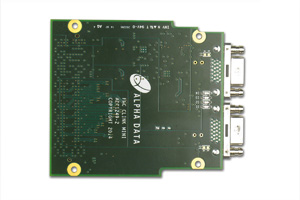

FMC-CAMERALINK – Camera Link I/O Interface

Applications

• Camera Link I/O Interface
• Video Frame Grabber
• Image Processing
• Video Communications

Board Features

• Multiple CameraLink Modes
• VITA 57.1 FPGA Mezzanine Card (FMC)

Summary

The FMC-CAMERALINK is an FMC I/O Module which provides an industry standard CameraLink interface.

It provides the user with the ability to implement computationally-intensive applications such as frame grabbers, digital video communications and image processing systems in the FPGA when using a compatible camera.

The FMC-CAMERALINK board supports 2x Base Cameras, 1x Medium/Full Camera and each option with or without Power over CameraLink (PoCL). Full user control of the standard camera control lines and serial interface are provided.

The FMC-CAMERALINK utilizes a Low Pin Count (LPC) interface, compatible with both LPC and HPC interfaces.
