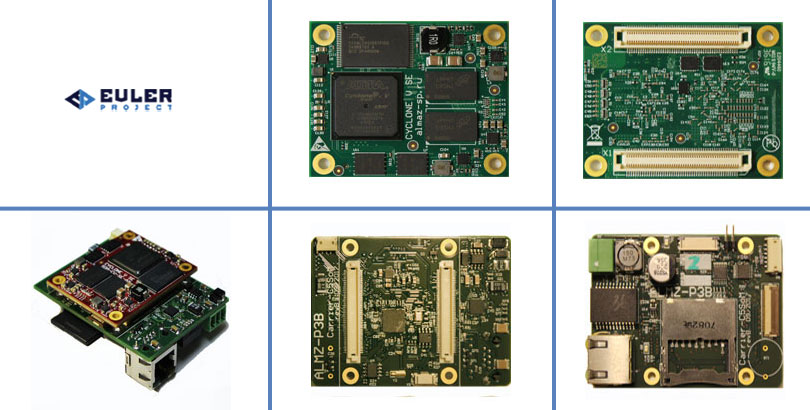

SoC SoMs are small, integrated single-board computers with Cyclone® V SoCs at the core.
The SoC SoM includes DDR3 memory, flash memory, power management, common interface controllers, and OpenCL board support package (BSP) software to help you create a fully customized embedded design without starting from scratch.
Сharacteristics
| Memory | DDR3-400MHz 256MB / 512MB / 1GB |
| Flash | - NAND FLASH 128MB / 256MB / 512MB
- QSPI FLASH 8MB / 16MB / 32MB
|
| HPS system | - CPU: 800-MHz, dual-core ARM® Cortex™-A9 MPCore™ processor
- SD/SDIO/MMC controller with DMA
- 2x 10/100/1000 Ethernet media access control (MAC) with DMA
- 2x USB On-The-Go (OTG) controller with DMA
- 2x I2C controller
- 2x UART
- 2x serial peripheral interface (SPI)
- Up to 134 general-purpose I/O (GPIO)
- 7x general-purpose timers
- 4x watchdog timers
|
| FPGA system | - LEs(K): 25 – 110
- ALMs: 9,434 – 41,509
- M10K memory blocks: 140 – 514
- M10K memory (Kb): 1,400 – 5,140
- MLABs (Kb): 138 – 621
- 18-bit x 19-bit multipliers: 72 – 224
|
| Mechanical specifications | 54mm x 44mm |
| Software support | Preinstalled firmware (U-BOOT, Linux kernel, rootfs image), OpenCL BSP |
| Hardware support | Low cost evaluation carrier board, Custom carrier board development, Video-kit |
| Pricing indication | - SOM-Module SOC 5CSEA2 (25KLE, 512 MB DDR3, 128MB NAND, 8MB QSPI): -40..85, 1+: 269$, 100+: 219$
- SOM-Module SOC 5CSEA6 (110KLE, 1024 MB DDR3, 512MB NAND, 32MB QSPI): -40..85, 1+: 309$, 100+: 269$
|
