ADM-VPX3-9Z5/DEV – Development Platform for Xilinx Q Grade MPSoCs

ADM-VPX3-9Z5/DEV – Development Platform for Xilinx Q Grade MPSoCs


  • Development Platform for Xilinx Q Grade MPSoCs
  • High Altitude Sensor Processing
  • Harsh SWaP limited Environments

Board Features

  • Xilinx Zynq UltraScale+ MPSoC XQZU19EG-1 FPGA
  • FMC+ HPC Interface
  • Compliant with Xilinx LVAUX mode for XQ UltraScale+
  • Military-Grade Power Supplies from Texas Instruments
  • OpenVPX / SOSA Compliant VPX3

FPGA Features (Hard IP)

  • 4x Arm® Cortex™-A53 MPCore™
  • 2x Arm Cortex-R5 MPCore
  • 1x Arm Mali™-400 MP2
  • 5x PCI Express Gen3 x16 cores
  • 4x 100G Ethernet MAC/PCS with RS-FEC

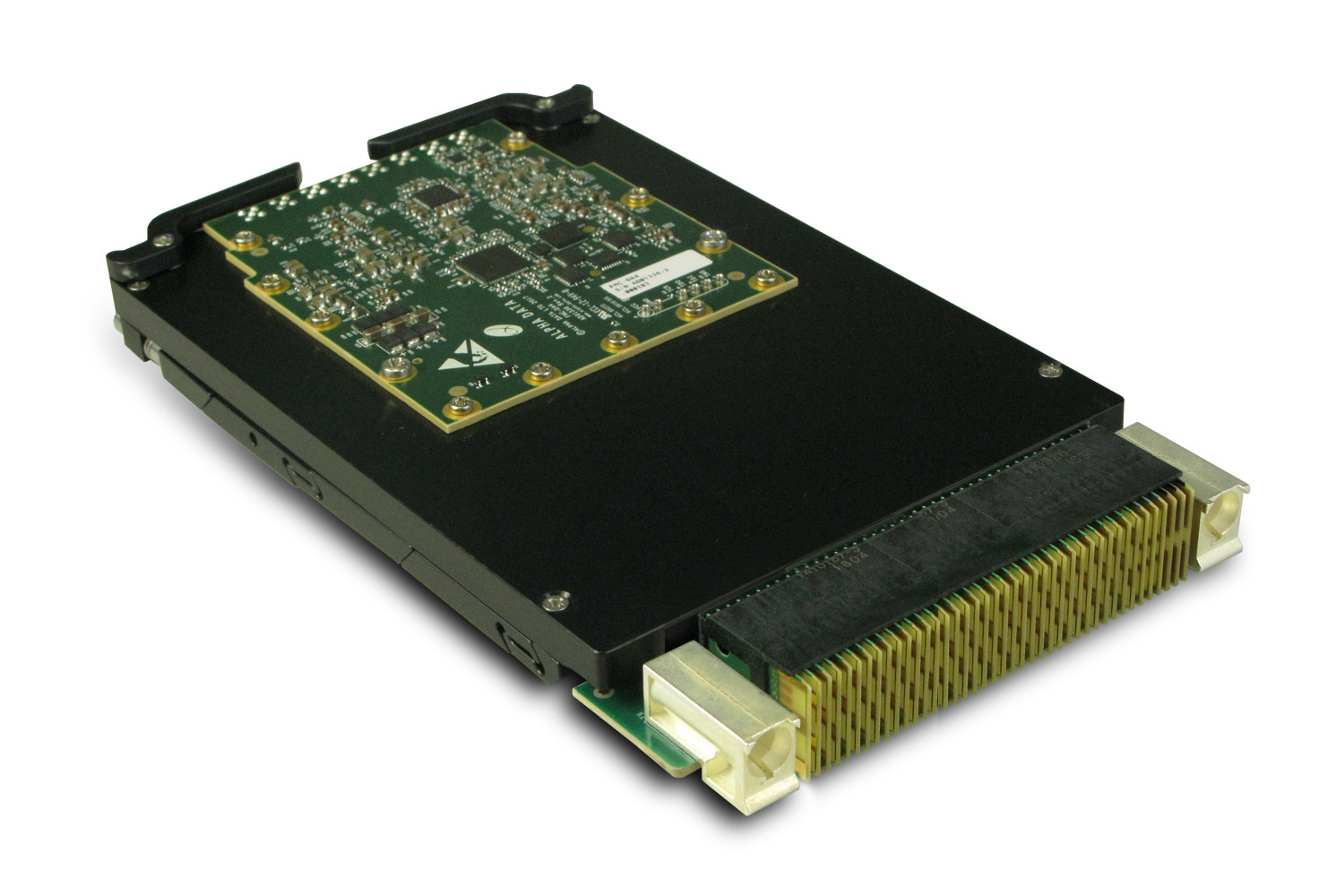

The ADM-VPX3-9Z5/DEV is an OpenVPX MPSoC FPGA System on Module (SoM) utilizing the Xilinx Zynq UltraScale+ XQZU19EG M-temp device. The ADM-VPX3-9Z5/DEV has been developed in partnership with Xilinx and Texas Instruments and features Mil-temp range (-55C to +125C) board components throughout for reliability. The ADM-VPX3-9Z5/DEV is suitable for high-altitude applications and is compliant with LVAUX mode for Single Event Effects (SEE).

The ADM-VPX3-9Z5/DEV provides flexible IO via an FMC+ Site and via the VPX backplane, dual 8GB DDR4-2400 SDRAM (PL and PS), 1Gb QSPI configuration Flash, System Monitoring and Mil-temp enhanced products for Power and Temperature Sensing solutions from Texas Instruments. The ADM-VPX3-9Z5/DEV is compatible with a development Rear Transition Module (p/n ADM-VPX3-9Z5-RTM).
