ADM-PCIE-9H7

High-Speed Communications Hub

Applications

• High-Speed Communications Hub
• In-Network Compute
• Network Accelerator
• High Performance Computing (HPC)
• Data Processing
• System Modeling
• Market Analysis

Board Features

• 2x OpenCAPI Interfaces
• 4x QSFP28 Cages
• 8x Firefly Interfaces

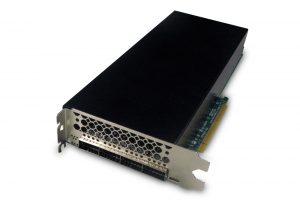

• Shrouded heatsink with passive and fan cooling options

FPGA Features (Hard IP)

• 2x 4GB HBM Gen2 memory (32 AXI Ports provide 460GB/s Access Bandwidth)
• 8x 100G Ethernet MACs (including KR4 RS-FEC)
• 4x 150G Interlaken cores
• 6x PCI Express x16 Gen3 / x8 Gen 4 cores (CCIX Capable)

Summary

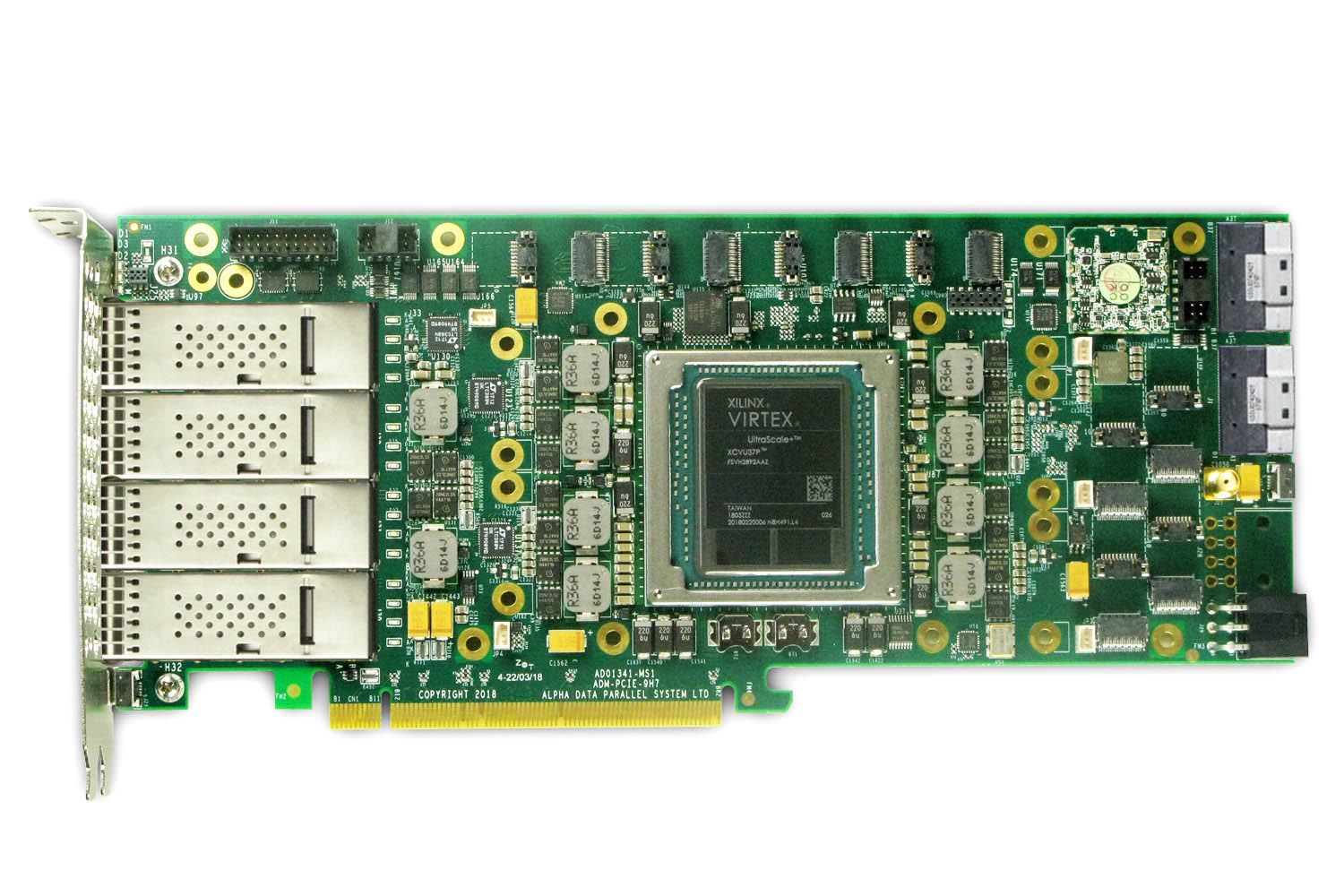

The ADM-PCIE-9H7 is a high-performance FPGA processing card intended for data center applications using Virtex UltraScale+ High Bandwidth Memory FPGAs from Xilinx.

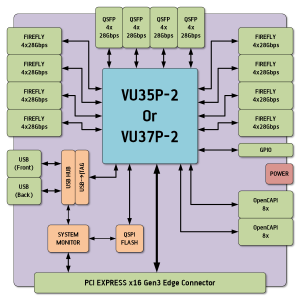

The ADM-PCIE-9H7 utilizes the Xilinx Virtex UltraScale Plus FPGA family that includes on substrate High Bandwidth Memory (HBM Gen2). This provides exceptional memory Read/Write performance while reducing the overall power consumption of the board by negating the need for external SDRAM devices. There are also a large number of high speed interface options available including 100G Ethernet MACs, 150G Interlaken cores and multiple PCI Express cores. To make the most of these interfaces the ADM-PCIE-9H7 is fitted with 4 QSFP28 Cages, up to 8 Firefly interfaces (each 4x 28Gbps) and two OpenCAPI interfaces for ultra low latency communications.
