Xgig 5P8 Analyzer Platform for PCI Express 5.0

Provides full-speed 32Gbps data capture, enabling detailed functional and performance analysis of PCIe protocol.

Xgig 5P8 Analyzer Platform for PCI Express 5.0

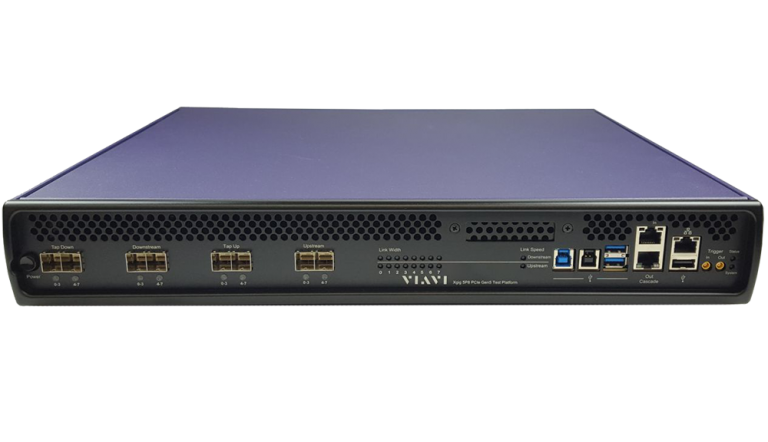

The Xgig® 5P8 platform provides protocol analysis for PCIe 5th generation traffic at all layers of the stack. It supports link widths up-to 8-lanes, and link speeds to 32 GT/s.

Providing both PCIe protocol analysis and jamming functions, the Xgig 5P8 Protocol Analyzer expands the family of VIAVI protocol analysis products. In today’s complex, multiprotocol environments where integrated analysis with other interfaces such as Ethernet, SAS, and FC are required, the Xgig 5P8 connects with other VIAVI protocol analyzers designed for these protocols to provide time correlated multiprotocol views.

The Xgig 5P8 chassis has 128 GB of memory; 64GB for upstream and 64GB for downstream traffic capture. The chassis provides advanced PCIe and NVMe level trigger and search capabilities designed to reduce debug and problem resolution down time. Interposer autotuning greatly simplifies, and speeds system use and enables repeatable capture results.

Please contact your local VIAVI representative for details or find more product options on our PCIe Test Equipment page.


  • The VIAVI 5P8 hardware chassis and complementary Xgig software tools support the latest PCIe 5.0 and NVMe specifications.
  • Analysis will alert the user to all protocol errors at every layer of the PCIe stack, including state and sub-state level errors within the LTSSM viewer.
  • When purchasing the 5P8 platform, also select an analyzer licenses, and interposers to fit your specific application requirements.

Key Features:

  • 32 GT/s, PCIe 5.0 data rate operation. Fully compatible with other PCIe data rates of 2.5, 5.0, 8.0 and 16.0GTps.
  • Link widths up to 8-lanes.
  • Memory segmentation for capture of multiple traces.
  • Host-Client connection for remote debugging using.
  • Ethernet or local debugging using USB.
  • Decodes all PCIe and NVMe traffic at all layers of the stack including the TLP, DLLP, and PHY layer logic sub-blocks.
  • Trigger and Search events include training sequences, ordered sets, queue pairs, PRPs, Scatter/ Gather Lists (SGL) etc.
  • Cascade up to four Xgig captures into a single trace view.
  • Full support of LTSSM for analysis.
  • Field replaceable modular fan and power supply assemblies.
  • LED’s give quick indicators of power and status.
  • Fully supported by Xgig™ tools including Trace Control and Expert.
