VTX881

2U VPX Chassis, Three 6U Slots with RTM Support

VTX881

2U VPX Chassis, Three 6U Slots with RTM Support

  • 2U Open VPX rackmount system platform
  • Horizontal slots
  • Dedicated Switch/management slot
  • Up to two 6U VPX payload slots

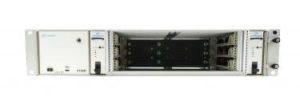

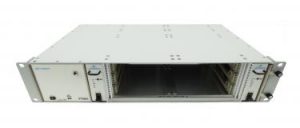

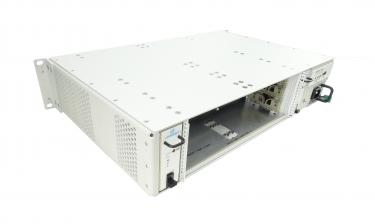

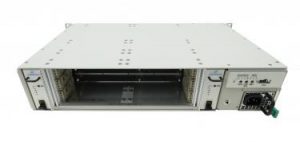

The VTX881 is a 2U VPX chassis with three 6U VPX slots. The chassis can accept 0.8-inch, 0.85-inch and 1.0-inch pitch modules and is ideal for commercial deployment.

Power Supplies

The VTX881 has a single AC input power supplies to provide 800W or -48V DC 650W. The chassis supplies 200W/slot and the AC input is universal.

Cooling and Temperature Sensors

The VTX881 is designed to meet the ANSI/VITA 65 standard. It provides right to left push/pull cooling (18 CFM per payload slot at 0.24 in-H2O @ 5000 feet) to the VPX payload and RTM slots. The Chassis has a removable Air Filter at the front.

Backplane

The backplane provides two 5 HP VPX payload slots in a star configuration, fully compliant to VITA 46.0 baseline specification with additional support to the RTMs, compliant to VITA 46.10 and OpenVPX VITA 65.

JSM

There is an optional JTAG Switch Module to provide JTAG access to the rear.

Key Features

  • 2U Open VPX rackmount system platform
  • Horizontal slots
  • Dedicated Switch/management slot
  • Up to two 6U VPX payload slots
  • Compatible with 0.8-inch, 0.85-inch and 1.0-inch modules
  • Support for Rear Transition Modules (RTMs)
  • Redundant cooling in push/pull side to side airflow configuration
  • Optional JTAG Switch Module (JSM)

Benefits

  • 800W AC or 650W DC Power Input
  • Electrical, mechanical, software, and system-level expertise in house
  • Full system supply from industry leader
  • AS9100 and ISO9001 certified company
