VPX585

Zynq UltraScale+ FPGA, FMC+ Carrier, VPX

  • Xilinx UltraScale+ XCZU19EG FPGA
  • Single FMC+ (VITA 57.4) site
  • 8 GB of 64-bit wide DDR4 Memory (single bank) with ECC (CPU)
  • 8 GB of 64-bit wide DDR4 Memory (single bank, FPGA)

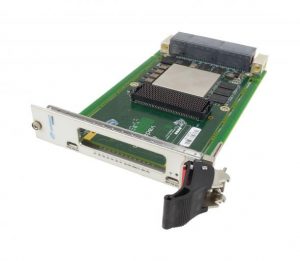

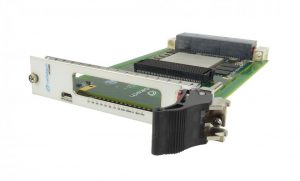

The VPX585 is a 3U VPX FPGA Carrier with single FMC+ (VITA-57.4) interface. The unit has an onboard, re-configurable FPGA which interfaces directly to the VPX P1 connector and all FMC+ LA/HA/HB pairs (the module does not support HSPCe connector).

The FPGA interfaces to two DDR4 memory blocks (8GB of 64-bit wide with ECC to the Processor Subsystem, and 8GB of 64-bit wide to the Programmable Logic). This allows for large buffer sizes to be stored during processing as well as for queuing the data to the host.

The VPX is based on Xilinx UltraScale+ XCZU19EG MPSoC FPGA with single FMC+ site. The FPGA has 1968 DSP Slices and 1143k logic cells. The XCZU19EG includes quad-core ARM application processor, dual-core ARM real-time processor and Mali™ graphics processing unit, as well as over 34.6 Mb of block RAM and 36 Mb of UltraRAM.

The module has onboard 64 GB of Flash, 128 MB of boot flash and an SD Card as an option.

Key Features

  • Xilinx UltraScale+ XCZU19EG FPGA
  • Single FMC+ (VITA 57.4) site
  • 8 GB of 64-bit wide DDR4 Memory (single bank) with ECC (CPU)
  • 8 GB of 64-bit wide DDR4 Memory (single bank, FPGA)
  • MPSoC with block RAM and UltraRAM
  • Health Management through dedicated Processor

Benefits

  • FMC+ site on a single module VPX
  • Zynq UltraScale+ MPSoC
  • Electrical, mechanical, software, and system-level expertise in house
  • Full system supply from industry leader
  • AS9100 and ISO9001 certified company
