Waterproof – IP67

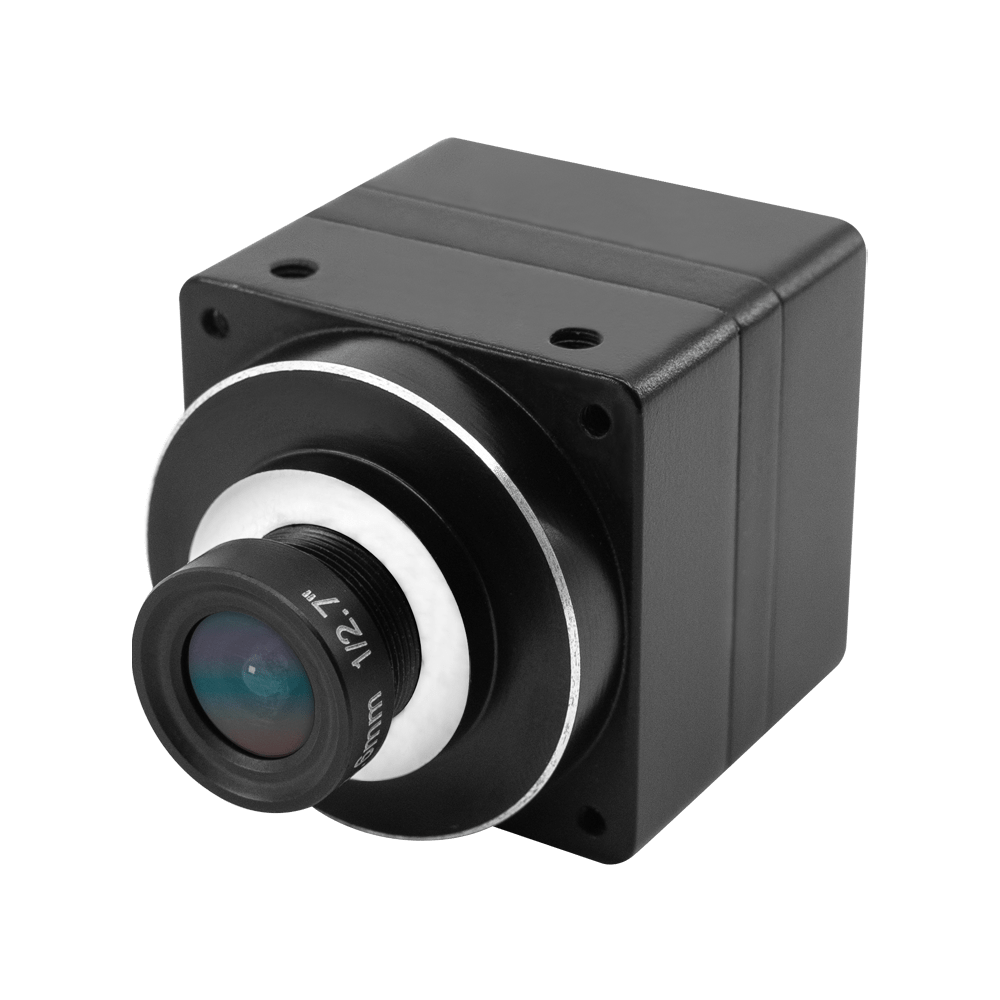

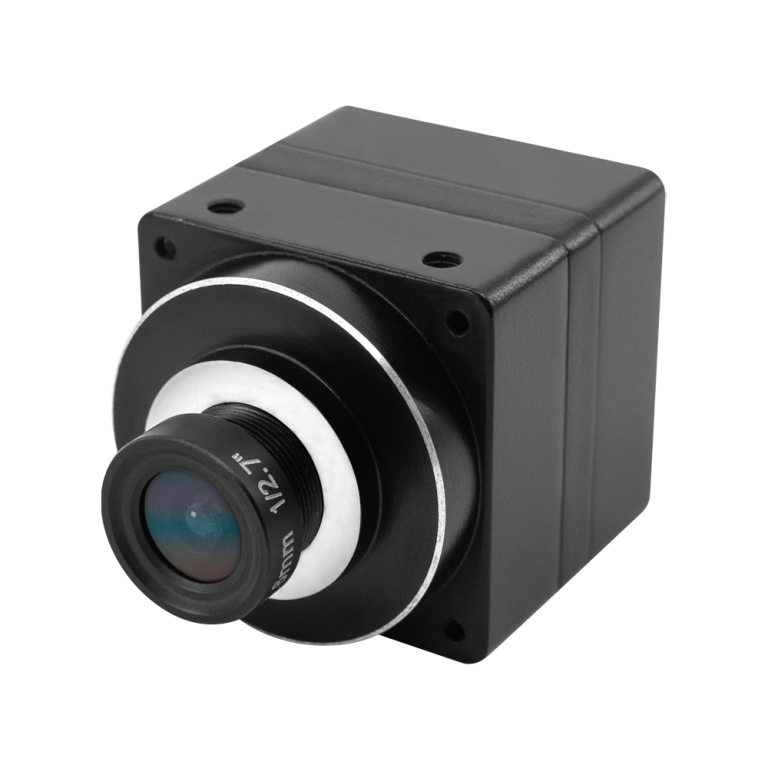

Complete waterproof Vizionlink™ camera for indoor and outdoor applications.


Image lens correction, pixel correction, gamma correction, auto exposure and many more ISP functions. All integrated and available without special software tuning.

Rolling Shutter

Designed for UAV/Drone and robotics the rolling shutter brings you the most economic embedded remote vision.


Interchangeable S-Mount lenses to fit viewing angle, focus point and image correction applications.

Rugged by Nature

Bring Vizionlink™ outdoor in drone / UAV applications, robotics, remote supervision and factory automation or warehousing applications.

Software Platform

Software integration available for NXP i.MX8 Family and Nvidia Jetson.

Minimum Investment

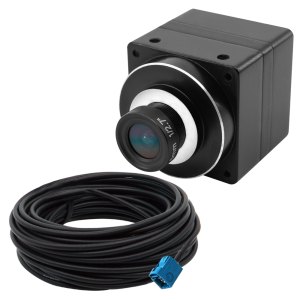

Ease of installation and maintenance. A single coaxial cable carrying power and data signals.

Automotive Ready

FAKRA interconnect carrying power and signals over a single COAX cable up-to 15 meters away from your embedded system.


Sensor Information
CMOS Sensor ON Semi AR0521
Active Pixels 2592(H) x 1944(V)
Pixel Size 2.2µm x 2.2µm
Optical Format 1/2.5″ (Diagonal 7.13mm)
Shutter Type Rolling Shutter
Chromaticity Mono / Color
Maximum Frame Rate 5MP @ 60 FPS
Chief Ray Angle
Input Clock Range 10 – 48 MHz
Bit Depths 8 / 10 / 12 bit
Certification and Compliance
Certification Compliant with CE / FCC / RoHS / REACH directives
Environmental and Mechanical
Dimensions 26.5 x 26.5 mm
Relative Humidity 10 to 90 %
MTBF 50,000 Hours
Shock 15G half-sine 11 ms duration
Operation Temperature Industrial: -30° to +85° C
Vibration 1 Grms random 5-500Hz hr/axis
Weight 5 grams
Shop Data
Brand TechNexion
Country of Origin Taiwan
HTSN 8525.80.5050
