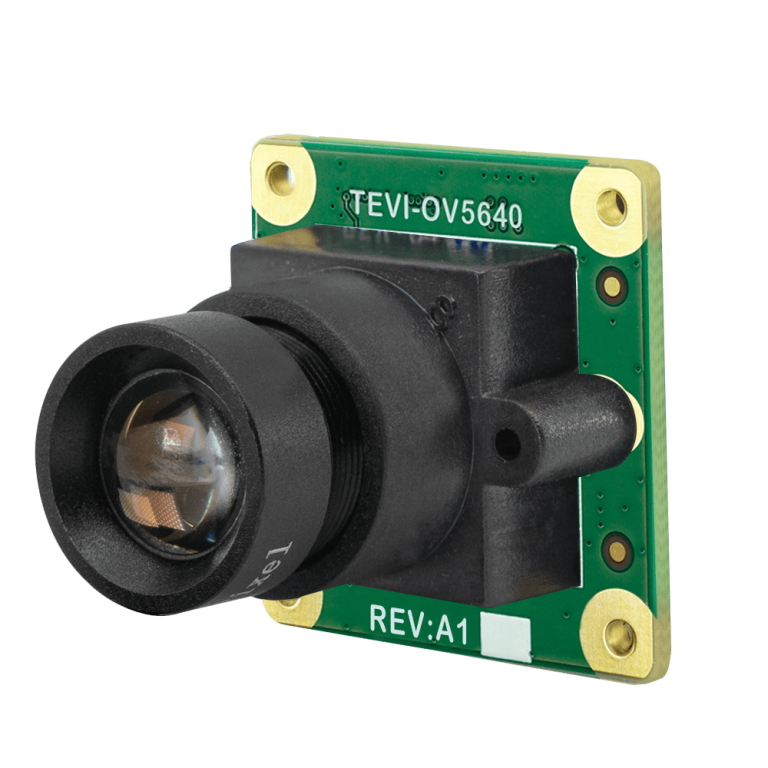

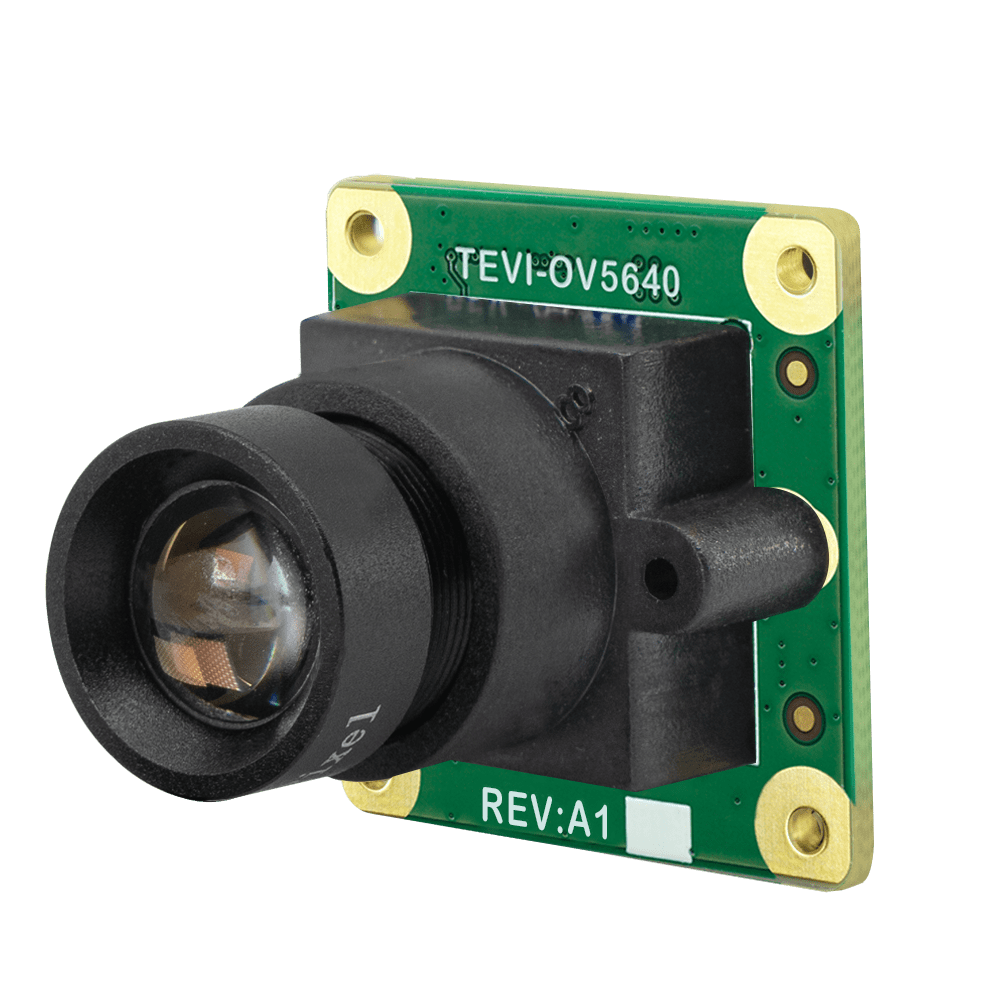

• 5MP Camera Sensor for general embedded applications
  • Integrated Image Signal Processor (ISP)
  • Convenient M12 interchangeable lens
  • Software integration for NXP i.MX family
  • Compatible with Nvidia Jetson Nano / Xavier NX

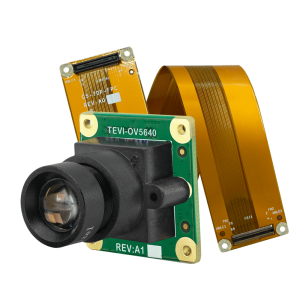

  • Quick Evaluation Kits available

MIPI Interface

Pin compatible MIPI connector to easily change among TechNexion camera modules to fit the best camera sensor for your project anytime.

Platform Software

V4L2 drivers and integration for TechNexion System-on-Modules and NVidia Jetson family.

Rolling Shutter

Optimized for UAVs surround camera’s, people counting and integrated embedded camera’s in Point of Interest and Kiosk applications.

Rugged and reliable

Designed to be used in semi outdoor or cool warehousing environments.


Color correction, Lens calibration, over exposure management and many other functions already taken care of with a built-in ISP.

Interchangeable Lenses

Every embedded project has different requirements regarding which lens will fit. TechNexion offers a wide variety of lenses and can assist with calibration and lens correction on a consultancy basis.

 Optimize your ROI

Our camera’s come with software integration and are pre-calibrated for TechNexion lenses. This not only save you a lot of engineering time. It will certainly speed up your time to market.

Environmental Friendly

Designed to operate at the lowest required voltages and optimized to take full advantage of power saving functions. Prolongs the lifetime of our products.

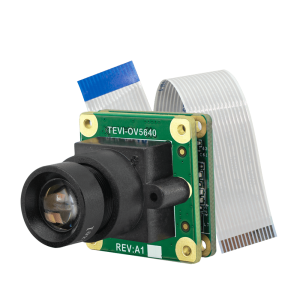

20 Pin EVK for RPI compatible Boards


Sensor Information

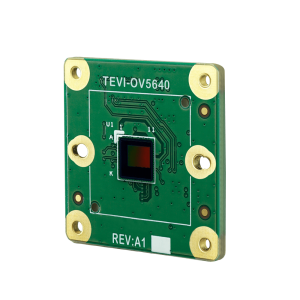

CMOS Sensor Omnivision OV5640
Active Pixels 2592(H) x 1944(V)
Pixel Size 1.4 μm x 1.4 μm
Optical Format 1/4″
Shutter Type Rolling Shutter
Chromaticity Color
Maximum Frame Rate 1080p: 30 fps
1280×960: 45 fps
720p: 60 fps
QSXGA (2592×1944): 15 fps
QVGA (320×240): 120 fps
VGA (640×480): 90 fps
Chief Ray Angle 24 degrees
Input Clock Range 10 – 48 MHz
Bit Depths 8 / 10 bit

Certification and Compliance

Certification Compliant with CE / FCC / RoHS / REACH directives

Environmental and Mechanical

Dimensions 26.5 x 26.5 mm
Relative Humidity 10 to 90 %
MTBF 50,000 Hours
Shock 15G half-sine 11 ms duration
Operation Temperature -30° ~ 70℃
Vibration 1 Grms random 5-500Hz hr/axis
Weight ≤ 2 grams

Shop Data

Brand TechNexion
Country of Origin Taiwan
HTSN 8525.80.5050


Communication Interface I2C
MIPI-CSI2 (2 Lane)
Connector 70 Pin Standardized Camera Connector

Platform Support

Platform Support Nvidia Jetson Nano
Nvidia Jetson Xavier NX
NXP i.MX Series


ISP Functions Automatic 50/60 Hz Luminance Detection
Automatic Band Filter (ABF)
Automatic Black Level Calibration
Auto Exposure
Auto Gain
Auto White Balance
Color Calibration
Lens Correction
