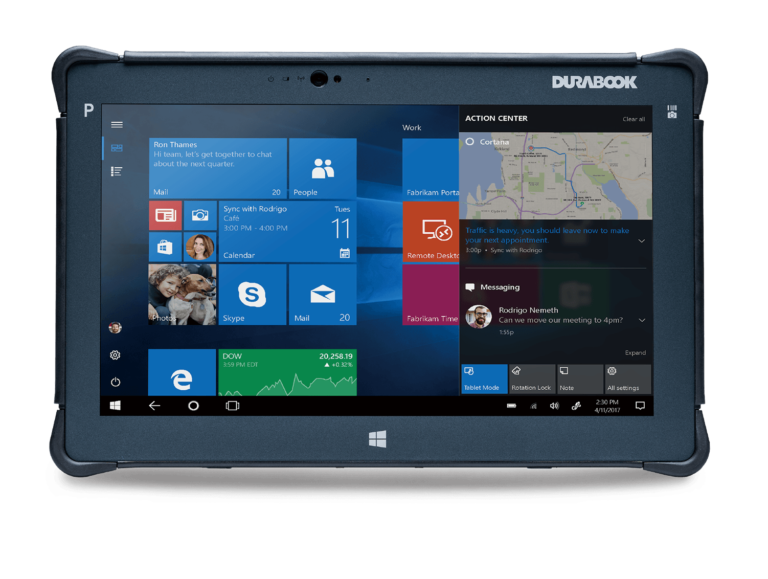

R11 Tablet
Thin and Light with Enterprise-Class Performance
Every inch and detail of the Durabook R11 is designed to maximize the efficiency of professional field workers. The Durabook R11 is only 20mm (0.78″) in height and weighs just 1.2kg (2.7lb), making it the world’s most compact tablet in the fully-rugged class. Adding to its appeal is a smooth, streamlined exterior that complements its tough image.

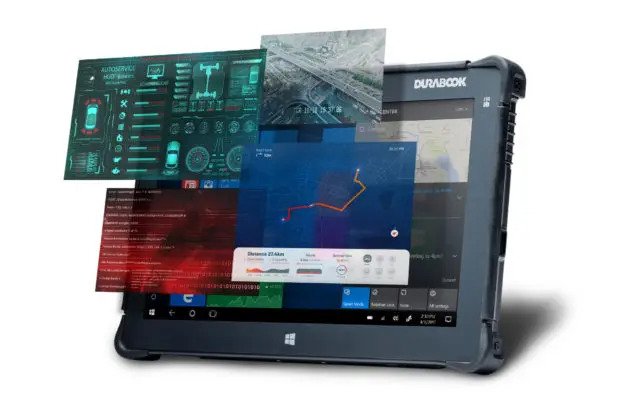

ENTERPRISE-CLASS PERFORMANCE
The R11 offers the latest Intel® 8th Generation CPUs with Turbo Boost speeds up to 4.2 GHz, plus Intel® UHD Graphics 620, packing great performance and visuals into a compact form. Plus, the high-speed data transmission capability of Intel® Dual Band Wireless AC 9260 and Bluetooth® V5.0 means smooth, congestion-free processing at all times.
THIN, LIGHT AND STREAMLINED
The thinner and lighter, the better. The R11 is only 20mm (0.78″) thick and weighs just 1.2kg (2.7lb), making it the world’s most compact tablet in the fully-rugged class. Adding to the R11’s appeal is a smooth, streamlined exterior that complements its rugged image.
ROCK-SOLID DESIGN

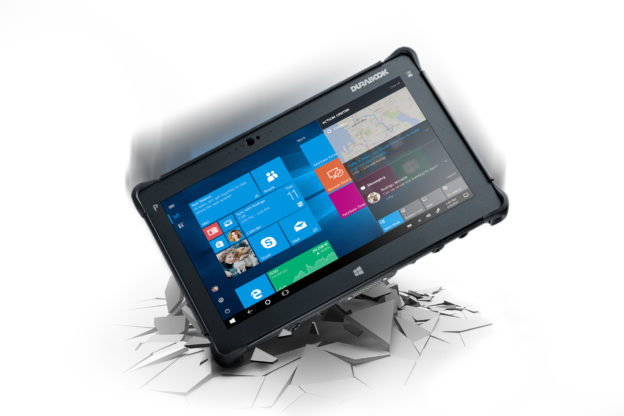

The R11 is especially resilient to accidental drops thanks to the enhanced protection of rubber frame protectors on all sides. This tablet is MIL-STD-810G and MIL-STD-461F certified, ANSI 12.12.01 C1D2 certified, and IP65 rated, assuring shock, 4-foot drop and vibration protection, as well as the ability to withstand use in a wide range of temperatures.

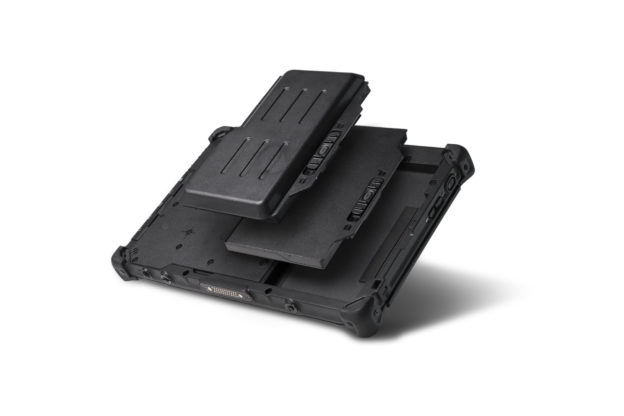

POWER FOR THE LONG HAUL
Battery life is always a critical concern for keeping professional field workers productive. The R11 offers an optional high-capacity battery that lasts for up to 16 hours without a charge.

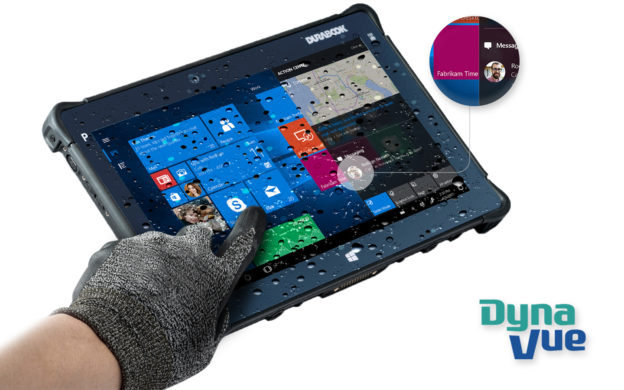

SHARP INSIDE AND OUT
When your office includes rain, cold, bright sunlight and other environmental challenges, you need a device that’s purpose built. The R11 features an 11.6” FHD (1920×1080) LCD with Durabook’s proprietary DynaVue® technology for exceptional viewing even in direct sunlight. The R11 has also a 10-point capacitive multi-touch panel.
R11 TABLET ANATOMY
FRONT
REAR

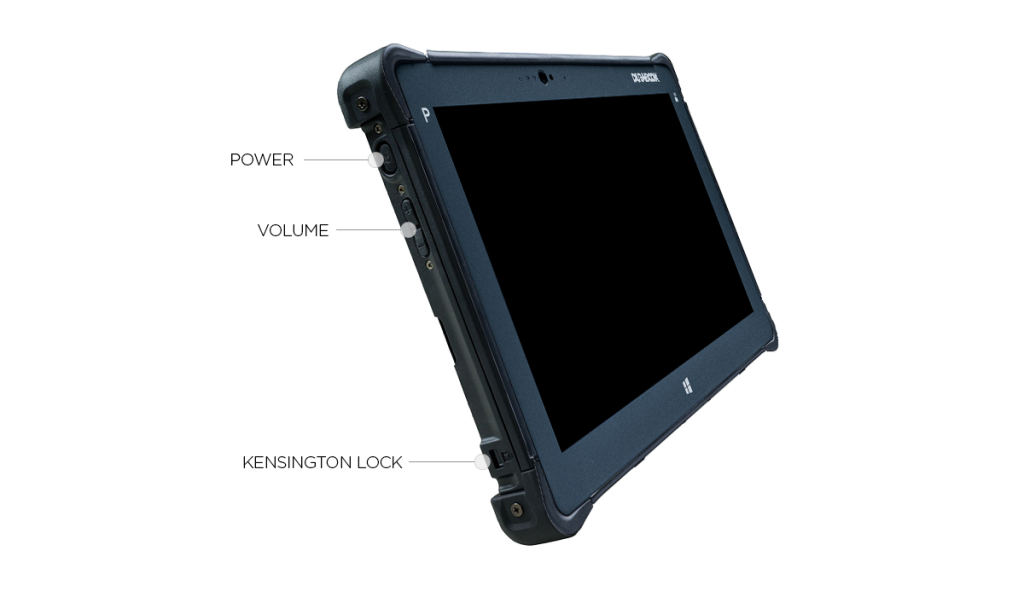

RIGHT
LEFT
Specifications
Rugged Specs
| MIL-STD-810G Certified | 4′ drop 26 faces, drop, shock, vibration, altitude, freeze/thaw, high/low temperature, temperature shock, humidity) |
| Electromagnetic | MIL STD-461F |
| Water and Dust Resistant | IP65 |
| Hazardous Environment | ANSI C1D2 12.12.01 |
Tech Specs
| Display | 11.6″ FHD (1920 x1080) Optional 500 nits DynaVue® sunlight readable display with capacitive multi-touch screen |
| Operating System | Windows® 10 Pro |
| Processors | Intel® Core™ i7-8650U vPro™ (8th Gen) 1.9GHz up to 4.2GHz processor, 8MB cache Intel® Core™ i7-8550U (8th Gen) 1.8GHz up to 4.0GHz processor, 8MB cache Intel® Core™ i5-8350U vPro™ (8th Gen) 1.7GHz up to 3.6GHz processor, 6MB cache Intel® Core™ i5-8250U (8th Gen) 1.6GHz up to 3.4GHz processor, 6MB cache |
| Memory | 1 slot 8GB up to 16GB (2400MHz DDR4) |
| Storage | 128GB SSD Optional 256GB/512GB SSD |
| Graphics | Intel® UHD Graphics 620 |
| Camera | Front: Integrated 2MP Webcam Rear: 5.0MP auto-focus rear camera with flashlight |
| Audio | Integrated microphone Intel® High Definition Audio Compliant Integrated speaker x 1 |
| Keyboard & Input | 6 buttons (1 user-definable) |
| I/O Ports | USB 3.0 (type A) x 2 Audio in/out (combo jack) x 1 microSD card (support microSDXC) x 1 Docking connector (35-pin Pogo) x 1 SIM card slot x 1 DC-In jack x 1 Optional RF antenna pass-through for GPS, WWAN4 |
| Expansion Slots | Optional 1D/2D Barcode Reader Optional RJ-45 x 1 or Smart Card / CAC Reader or HF/LF RFID2 |
| Wireless & Communications | Intel® Dual Band Wireless AC 9260 (802.11a/b/g/n/ac) Bluetooth® V5.0 Optional dedicated GPS module (UBLOX-NEO-M8N)4 Optional 4G LTE multi-carrier mobile broadband4 Optional RF antenna pass-through for GPS, WWAN4 |
| Security | Intel® vPro™ Technology (per CPU options) TPM 2.0 NIST BIOS compliant Stealth mode Kensington Lock Optional HF/LF RFID reader1 |
| Power | AC adapter : 100-240V, 50Hz-60Hz, 65W Main battery Li-Ion, 11.1V, 3950mAh, 8 hours3 Optional Hi-Cap battery Li-Ion 11.1V, 7800mAh, 16 hours3 |
| Dimension & Weight | 299 mm (L) x 192 mm (W) x 20 mm (H) 1.2 kg (with 3950mAH battery) |
| Warranty | 3-year limited warranty standard |
- Contact your sales representative for feature availability.
- RJ45, Smart Card reader and RFID are mutually exclusive options.
- Tested using the MobileMark 2014 battery life benchmark. Results may vary under different situations including hardware configuration, software, operating conditions, power management settings and other factors.
- WWAN and GPS are mutually exclusive.
