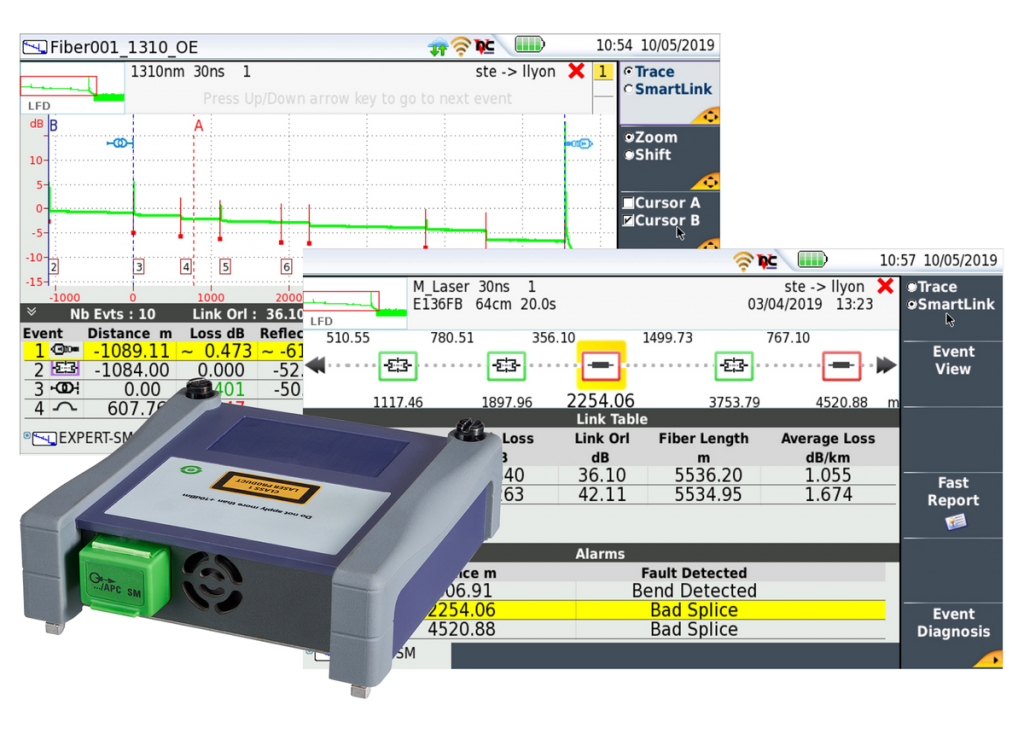

OTDR Modules – 4100-Series for CellAdvisor 5G, T-BERD/MTS-2000, -4000 V2, -5800 Platforms

VIAVI 4100-Series OTDR modules enable field technicians to rapidly, reliably, and cost-effectively install, turn up, and troubleshoot any optical network architecture – The optical performances of the 4100-Series OTDR modules combined with the complete suite of T-BERD/MTS platforms testing features ensure that any testing job is done right the first time.

Benefits:

• Combines OTDR, power meter and continuous light source for added testing flexibility
• Performs accurate PON networks troubleshooting with dedicated wavelengths for in-service troubleshooting.
• Avoids the risk of live signal interference or damage to the optical transmitter when performing OTDR test with instantaneous automatic traffic detection.

Applications:

• Construction, commissioning and troubleshooting of Metro and Long-Haul networks.
• Tier-2 certification and maintenance of Enterprise and Data Center networks.
• Characterization and troubleshooting of FTTA fiber cables (macro cell towers, wireless backhauls, distributed antenna systems and cloud radio access).
• Qualification and troubleshooting of FTTH-PON networks (fiber distribution and drop cables verification and test through splitters).

Key Features:

• Up to 45 dB dynamic range and 256,000 acquisition points.
• PON optimized to test through up to a 1×128 splitter.
• Combined singlemode/multimode version.
• Single-/Dual-/Tri-wavelength versions with 1310,1490,1550,1625, and 1650nm.
• Single connector port for 1310, 1550 and in-service 1625 or 1650nm wavelengths.
• Integrated light source and power meter on OTDR port.
• Available in FiberComplete version for automated bi-directional OTDR, IL and ORL measurements.
