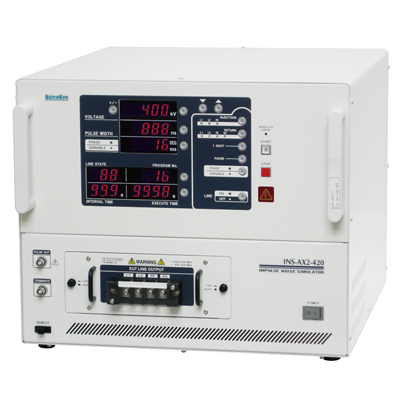

INS-AX2-220/250H/420/450H
Impulse Noise Simulator
The INS-AX2 series simulators are the advanced version of the conventional manually operated INS-4020/4040 simulators, maintaining the identical interference signal characteristics while offering a new level of ease of use.
FEATURES
- An innovative,motor driven coaxial switch mechanism eliminates the need to manually plug and unplug coaxial connectors, allowing a preset test sequence to be carried out seamlessly including pulse width and coupling mode changes, automatic voltage ramp and others.
- As well as manual control, the simulator can be remote-controlled through a fiber optic computer interface. Windows control software is free-downloadable from NoiseKen website.
- Floating output
- 8 pulse widths installed: 10ns, 50ns, 100ns, 200ns, 400ns, 500ns, 800ns and 1000ns
- Internal switchable terminators
- Easily changeable and safety-interlocked outlet panel (EUT interface)
- 3 channels EUT fail input
SPECIFICATIONS
| Item | Model | ||
| INS-AX2-220/250H | INS-AX2-420/450H | ||
| Pulse output voltage | 0.01 ~ 2.00kV±10% at 0.01kV step | 0.01 ~ 4.00kV±10% at 0.01kV step | |
| ±0.04kV allowance for <0.1kV setting When the output is terminated by the internal resistors. | |||
| Output polarity | Positive or negative | ||
| Pulse | Pulse width | 50, 100, 200, 400, 500, 800, 1000ns ±10%, 10ns±3ns | |
| Rise time | <1ns | ||
| Output impedance | 50 ohm system (53.5 ohm) | ||
| Pulse repetition mode | Variable | 10ms ~ 999ms±10% | 16ms ~ 999ms±10% |
| Phase | Injection phase angle 0 to 360 degrees±10 degrees EUT power supply:>AC90V, 50/60Hz±10% | ||
| 1 shot | Single pulse generation, each time the 1 SHOT button is pressed. Synchronized output with phase angle setting in PHASE mode | ||
| Power capacity of EUT | INS-AX2-220: Single phase AC240V/DC65V 20A INS-AX2-250H: 3-phase (4-wire) AC500V/DC250V 50A 50/60Hz±10% | NS-AX2-420: Single phase AC240V/DC65V 20A INS-AX2-450H: 3-phase (4-wire) AC500V/DC250V 50A 50/60Hz±10% | |
| Power supply | AC 100V~240V±10%, 50/60Hz±10% | ||
| Power consumption | 110VA | ||
| Operating temperature and humidity range | 15 ~ 35°C, 25 ~ 75% (No dewing shall occur.) | ||
| Dimensions | W 430 x H 350 x D 470mm, projection excluded | ||
| Weight | INS-AX2-220: Approx. 30Kg INS-AX2-250H: Approx. 38Kg | INS-AX2-420: Approx. 30Kg INS-AX2-450H: Approx. 38Kg | |
| Mercury relay unit | Model: 04-00014A | Model: 04-00015A | |
TRIANGULAR PULSE ADDITION (Factory Option)
| Parameters | Specifications | |
| Output pulse waveform | Triangular pulse | |
| Pulse output voltage | 2kV (220/250H) and 4kV (420/450H) max (when the output is terminated by the internal resistors) | |
| Output polarity | Positive or negative | |
| Pulse | Duration | 1μs±30% |
| Rise time | <40 ns | |
STANDARD ACCESSORIES
| INS-AX2-220/420 | INS-AX2-250H/450H |
| Outlet panel (Single phase terminal block type) Model:18-00067A AC240VDV65V20A max | Outlet panel (3-phase terminal block type) Model:18-00074A AC500VDV250V50A max |
| Power cable Instruction manual (for the simulator and remote control software) | |
