AMD Ryzen™ Embedded R1000 Series

  • Small form factor 1.8″ SBC for space-limited applications
  • Single Channel DDR4 Memory Down up to 4GB/8GB
  • HDMI 1.4 resolution supports up to 4096×2160 @ 24Hz
  • Expansion and Storage: 1 Mini PCIe, 1 SMBus

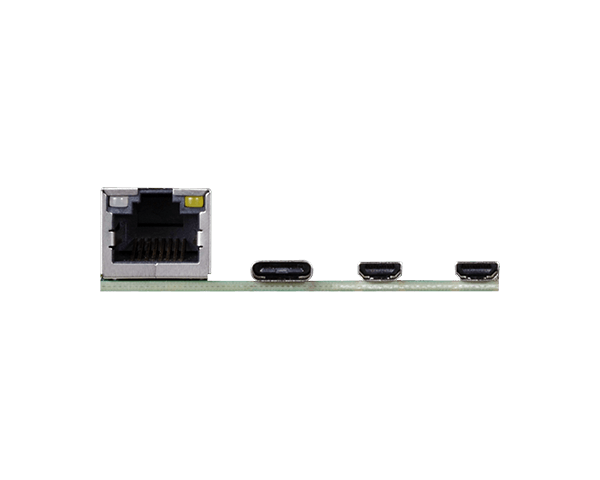

  • Rich I/O: 1 Intel GbE, 1 USB 3.1 Gen 2, 2 Micro HDMI
  • 10-Year CPU Life Cycle Support Until Q1′ 30 (Based on AMD Roadmap)

World’s First: 1.8″ Board with AMD Ryzen™

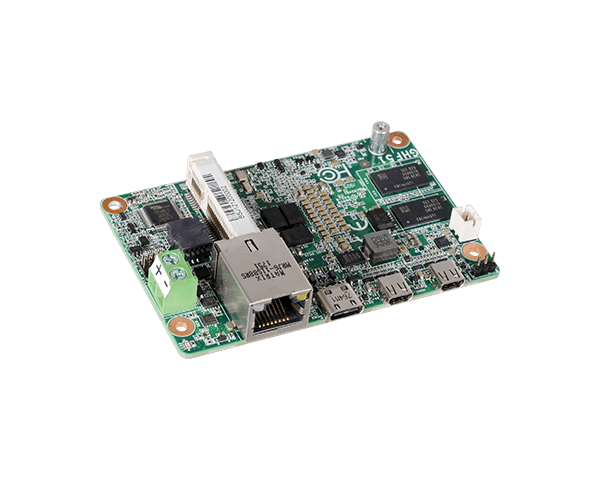

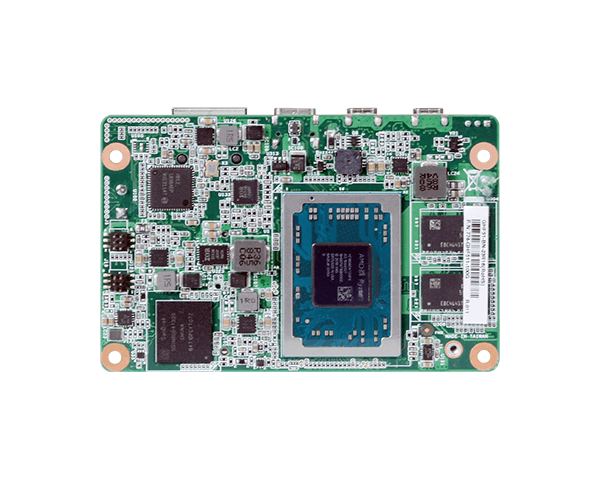

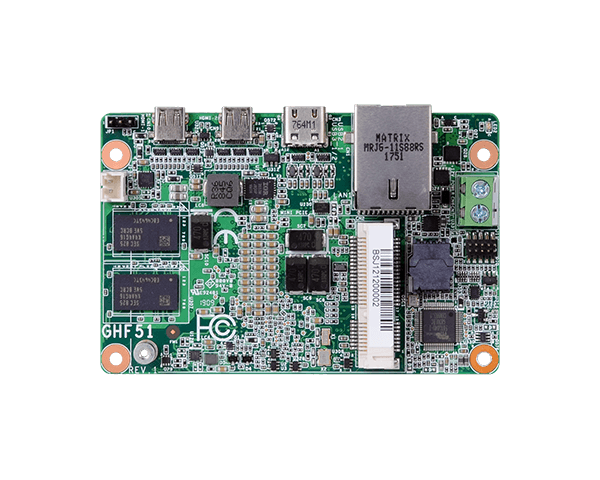

DFI’s GHF51 is the first in the world 1.8” industrial motherboard powered by high-performance AMD Ryzen™ R1000 Processors, holding an unprecedented processing throughput despite its mini size. It ascends from the industrial Pi and defines a new level of balance between performance and cost-effectiveness. Its flexible expandability brings versatility perfect for industrial application development, edge computing, AI vision, and more.

Ultra-small SBC to Give and Endure

The Pi-sized, industrial-class, ultra-small SBC, once powered on, will unleash exceptional performance from the all-in-one, up to 2x CPU core / 3x GPU CU integrated processors. With proprietary cooling architectures and fanless design, the heat from the processor spreads faster and efficiently, ensuring overall stability and continuity. The seamless collaboration between AMD processors and DFI’s SBC cooling technology sheds light on the path to edge computing.

Tailored for Industrial Applications

As industrial end devices hunger for more sophistication, GHF51 answers to the demands while asking for so little. By breaking the ceiling of processing power for a downsized board, it also consumes extremely low power with extended operating temperature, making it possible to be directly embedded and deployed for most mission-critical applications.

Dare to Define More

Small footprint doesn’t necessarily sacrifice expandability. GHF51, while taking up so little space and power, still provides multiple I/O — dual HDMI display, USB 3.1, and Mini PCIe for 3G/4G/Wifi cards. Its flexibility and versatility pack IoT and edge computing right into your business.

Prototyping = Producing

Small board has a big world. It creates and fulfills various space-constrained applications, so development SBCs become the favorite for prototyping, but are simultaneously an obstacle for mass production. Now, DFI, starting from ODM/OEM business, offers professional BIOS/OS/firmware/software tuning services on industrial SBCs for a ready-for-production prototype design, easily unlocking the producing restriction while giving deterministic performance to the end product.

Long-term Promise

Focusing on industrial solutions, DFI, following AMD long-lifecycle support roadmap for CPU, provides product availability up to 10 years. This support promises system upgrade in a long term without concern for compatibility.
