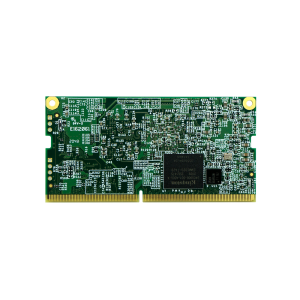

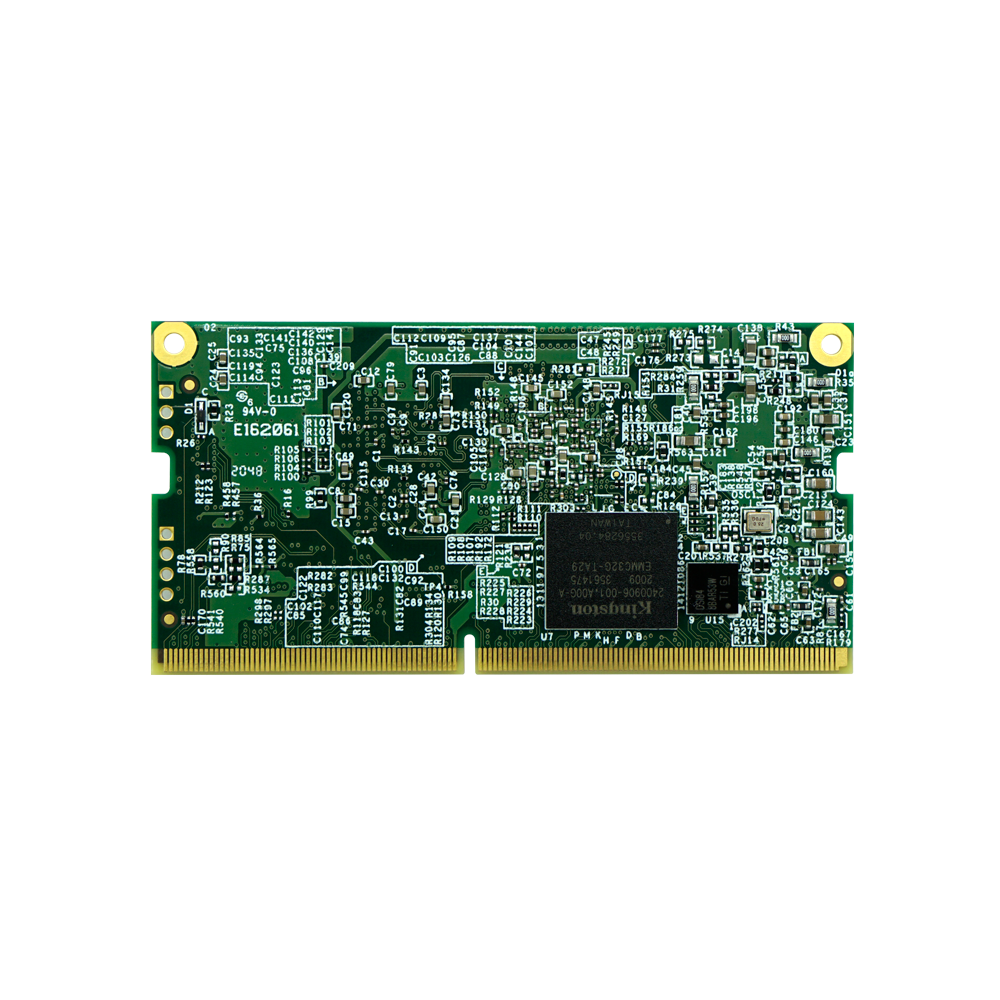

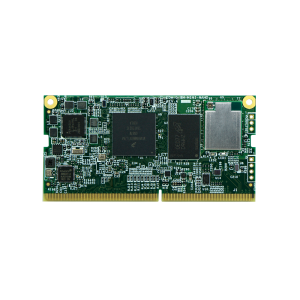

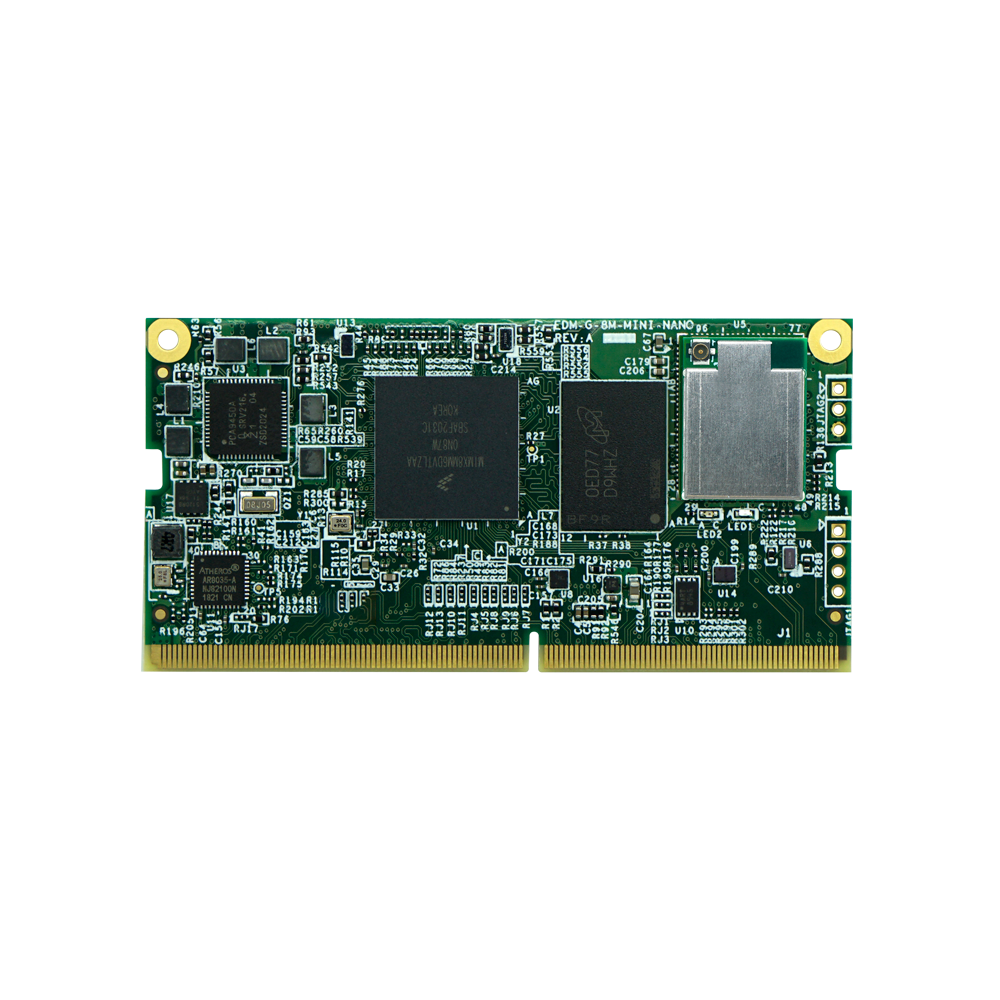

EDM-G-IMX8M-MINI

• Modern System on Module form factor
• Up to four Cortex-A53 1.8 GHz processors
• NXP i.MX 8M Mini applications processor
• Armv8 64-Bit CPU cores

Performance

The NXP i.MX8M mini low-power 64-bit Arm Cortex-A53 brings a Full-HD multimedia user experience for ubiquitous IIOT and Edge applications.

Certified Connectivity

Simplify your design with pre-certified wireless options — from the module to the antennas — to make end-device certification processes more predictable while cutting costs.

Rugged and Reliable

Our System-on-Modules are available in industrial grade configurations to withstand the worst environmental challenges your embedded product might face.

Interfaces

Packed with a wide array of interfaces Our System-on-Modules are as a Swiss Army knife with a wide array of interfaces ranging from GPIO, PWM to I²C, SPI, UART and USB.

Camera Integration

Machine Vision camera modules and complete off-the-shelf solutions available from TechNexion. Seamless integration and optimized from the first day of your project.

Power Optimized

One of the best choices when designing an embedded device when power and performance are in a stand-off and choosing sides is not an option. Take advantage of 64-bit processing power at minimum power usage requirements.

Software Platform

As a true opensource software advocate. TechNexion products are supported with a sourcecode BSP Linux and Android AOSP. Third party consultants can tailor solutions easily to make every embedded project a success.

Pin Compatible

Scalability at it’s finest is what sets TechNexion System-on-Modules apart. A single carrier board can host from a low-power i.MX8M Nano to a powerful SOC with integrated NPU that the i.MX8M Plus brings to the EDM System-on-Module family.

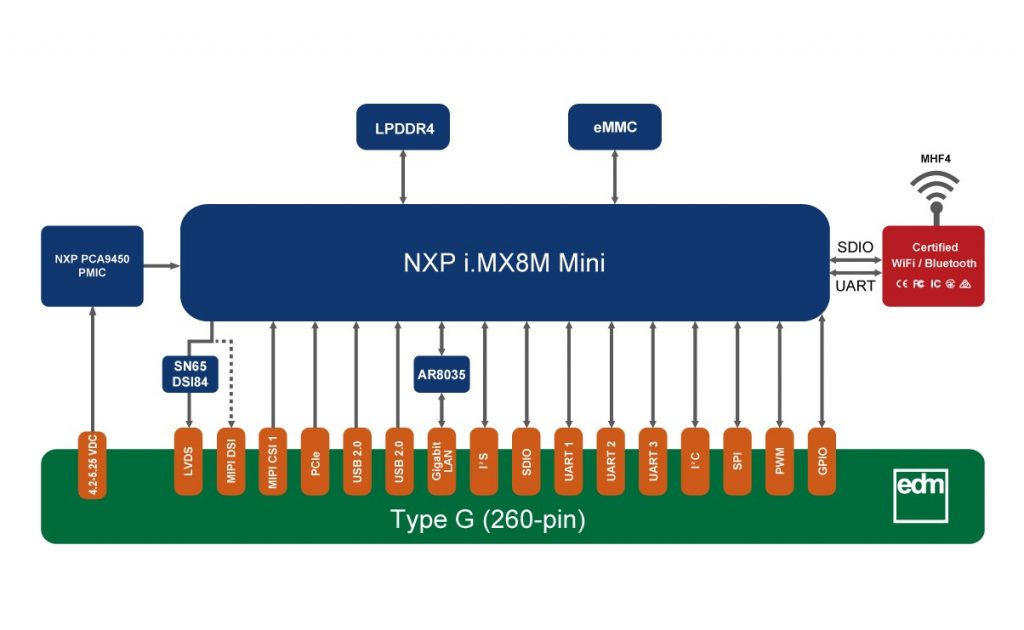

Core System
Processor NXP i.MX8M Mini Architecture ARM Cortex-A53 + M4 AI / ML OpenCL CPU: 32 GOPS PMIC NXP PCA9450 Memory Upto 8GB LPDDR4 Storage 32GB eMMC (default) Board-to-Board Connector 260-pin DDR4 SO-DIMM System on Module EDM SOM Debug Interface JTAG Interface by Through-hole
Connectivity
Network LAN 1x Atheros AR8035 Gigabit LAN Wi-Fi Qualcomm Atheros QCA9377 Wi-Fi 5 – 802.11 a/b/g/n/ac (optional) Bluetooth Qualcomm Atheros QCA9377 Bluetooth (optional) Antenna MHF4 connector (optional)
Signaling
I/O LVDS LAN MIPI CSI MIPI DSI PCIe USB USB OTG I²S SDIO UART SPI I²C PWM GPIO
Video
GPU Engine GC NanoUltra (1 shader) GC520L (2D) OpenGL ES 2.0 Video decode 1080p60 (h.265, VP9, h.264, VP8) Video encode 1080p60 H.264 Camera MIPI CSI (4 lanes)
Audio
Audio Codec On carrier board Audio Interface I²S (2 channel)
Power Specifications
Power Input 5V DC +/-5% Power Consumption Depending on Configuration
Operating Systems
Standard Support Linux Yocto Android Ubuntu
Certification and Compliance
FCC FCC ID: 2AKZA-QCA9377 IC IC: 22364-QCA9377 CE EN 300 328 v2.2.2 EN 301 893 v2.1.1 EN 55032 / EN 55024 TELEC (Japan) TELEC: 201-180629 RCM (Australia/New Zealand) RCM Compliant Certification Compliant with RoHS / REACH directives Bluetooth Logo QDID 150839 (Bluetooth 4.2)
Environmental and Mechanical
Dimensions 69.6 x 35mm Form Factor EDM Type G Relative Humidity 10 to 90 % MTBF 100,000+ Hours Shock 15G half-sine 11 ms duration Operation Temperature Commercial: 0° to +60° C Industrial: -40° to +85° C Vibration 1 Grms random 5-500Hz hr/axis Weight 8 grams
