High-Performance Network Accelerator


  • High-Performance Network Accelerator
  • In-Network Compute
  • High Performance Computing (HPC)
  • System Modelling
  • Market Analysis

Board Features

  • 1x OpenCAPI Interface
  • 1x QSFP-DD Cages
  • Shrouded heatsink with passive and fan cooling options

FPGA Features (Hard IP)

  • 2x 4GB HBM Gen2 memory (32 AXI Ports provide 460GB/s Access Bandwidth)
  • 3x 100G Ethernet MACs (incl. KR4 RS-FEC)
  • 3x 150G Interlaken cores
  • 2x PCI Express x16 Gen3 / x8 Gen4 cores

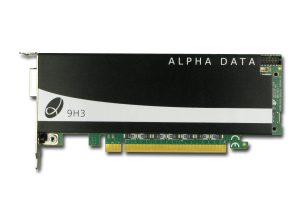

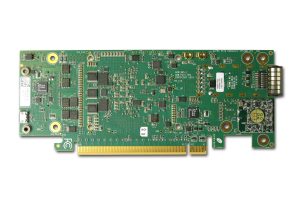

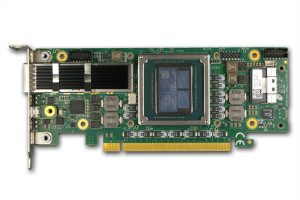

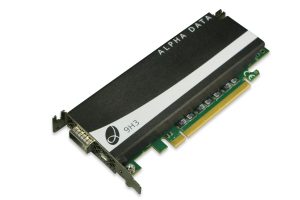

The ADM-PCIE-9H3 is a high-performance FPGA processing card intended for data center applications using Virtex UltraScale+ High Bandwidth Memory FPGAs from Xilinx.

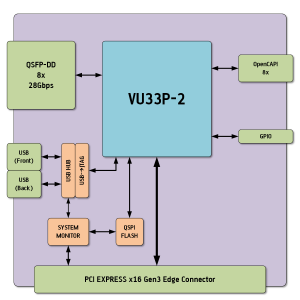

The ADM-PCIE-9H3 utilises the Xilinx Virtex Ultrascale Plus FPGA family that includes on substrate High Bandwidth Memory (HBM Gen2). This provides exceptional memory Read/Write performance while reducing the overall power consumption of the board by negating the need for external SDRAM devices. There are also a number of high speed interface options available including 100G Ethernet MACs and OpenCAPI connectivity, to make the most of these interfaces the ADM-PCIE-9H3 is fitted with a QSFP-DD Cage (8x28Gbps lanes) and one OpenCAPI interface for ultra low latency communications.
